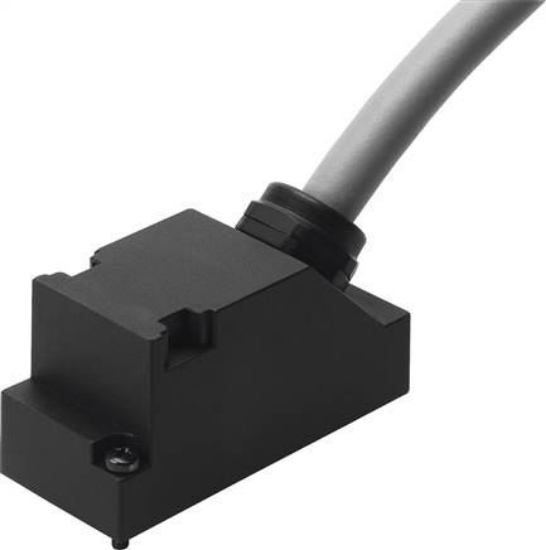

Product weight [g]
|
702 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Cable length [MTR]
|
5,0 |
|
Cable diameter [mm]
|
9,80 |
|
Cable set up
|
25x0,25 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-40 to 70 |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Housing material
|
PA |
|
Plug contacts material
|
Copper alloy gold plated |
|
Based on standard
|
DIN 41652 |
|
Line designation
|
With Accessories |
|
Connection frequency
|
50 |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
Angled |
|
Electrical connection 1, connection technology
|
Sub-D |
|
Electrical connection 1, number of pins / wires
|
25 |
|
Electrical connection 1, occupied pin / wire
|
25 |
|
Electrical connection 1, fastening type
|
2x Schraube M3 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
25 |
|
Electrical connection 2, occupied pin / wire
|
25 |
|
Nominal operating voltage DC [V]
|
24 |
|
Current carrying capacity at 40°C [A]
|
3,0 |
|
Surge voltage strength [kV]
|
1 |
|
Line properties
|
Cable track capable |
|
Test conditions line
|
Test conditions on request |
|
Bending radius, permanent cable placement [mm]
|
>= 31 mm |
|
Bending radius, moving cable placement [mm]
|
>= 51 mm |
|
Tolerance cable diameter
|
± 0,4 mm |
|
Conductor - nominal cross-section [mm²]
|
0,25 |
|
Wire ends
|
Cut dull |
|
Information about protection category
|
In mounted condition |
|
Ambient temperature for moving cable placements [°C]
|
-40 to 70 |
|
Bearing temperature [°C]
|
-25 to 75 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
3 |
|
Cable shield colour
|
#C6C6C6 |
|
Seals material
|
NBR |
|
Housing colour
|
#000000 |
|
Weight
|
702 g / Pcs |
|
GTIN
|
4052568153250 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBV-S1 (english) , Data sheet |
