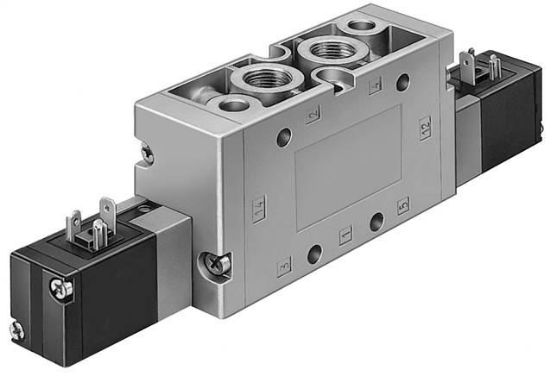

Valve function
|
5/2 bistable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
40 |
|
Normal nominal flow [l/min]
|
2.000 |
|
Operating pressure [bar]
|
2 to 10 |
|
Construction set up
|
Piston pusher |
|
Nominal width [mm]
|
12 |
|
Pitch dimension [mm]
|
41 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
tentative |
|
Control type
|
pilot operated |
|
Control air supply
|
Internal |
|
Flow direction
|
Not reversible |
|
Coverage
|
positive Überdeckung |
|
Max. switching frequency [hz]
|
3 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Bearing temperature [°C]
|
-40 to 60 |
|
Medium temperature [°C]
|
-5 to 50 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
900 |
|
Fastening type
|
on PR strip |
|
Pneumatic connection 1
|
G3/8 |
|
Pneumatic connection 2
|
G3/8 |
|
Pneumatic connection 3
|
G3/8 |
|
Pneumatic connection 4
|
G3/8 |
|
Pneumatic connection 5
|
G3/8 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium die casting |
|
Shifting time um [ms]
|
17 |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
2.200 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
3.700 |
|
Coil characteristic value
|
24 V DC: 2,5 W |
|
Permitted voltage oscillations
|
± 10 % |
|
Exhaust control connection 82
|
M5 |
|
Exhaust control connection 84
|
M5 |
|
Weight
|
900 g / Pcs |
|
GTIN
|
4052568112615 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Tiger 2000 (english) , Data sheet |
