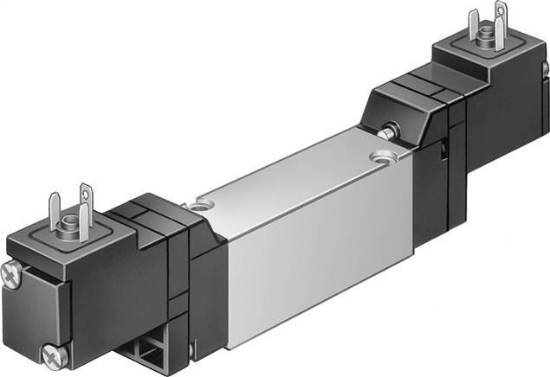

Valve function
|
5/2 bistable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
17,8 |
|
Normal nominal flow [l/min]
|
700 |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Pneumatic spring |
|
Protection category
|
IP65 |
|
Permission
|
c UL us - Recognized (OL) |
|
Nominal width [mm]
|
5 |
|
Pitch dimension [mm]
|
18 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
With Accessories ratcheting |
|
Control type
|
pilot operated |
|
Control air supply
|
external |
|
Flow direction
|
Reversible |
|
Coverage
|
positive Überdeckung |
|
b-value
|
0.38 |
|
C-value []
|
2,75 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
230 V AC: 50/60 Hz, pull-in power 3 VA, holding power 2.4 VA |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Oscillation strength
|
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 40 |
|
Medium temperature [°C]
|
-5 to 50 |
|
Noise level [Dezibel (?]
|
75 |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
146 |
|
electrical connection:
|
Wiring diagram Form C acc. to EN 175301-803 |
|
Fastening type
|
on connection plate |
|
Exhaust control connection 82/84
|
Connection plate |
|
Pneumatic connection 1
|
Connection plate |
|
Pneumatic connection 2
|
Connection plate |
|
Pneumatic connection 3
|
Connection plate |
|
Material information
|
RoHs compliant |
|
Seals material
|
HNBR |
|
Housing material
|
Aluminium die casting |
|
Control air 12 connection
|
Connection plate |
|
Control air 14 connection
|
Connection plate |
|
Control pressure [bar]
|
1.5 to 8 |
|
Pneumatic connection 4
|
Connection plate |
|
Pneumatic connection 5
|
Connection plate |
|
Shifting time um [ms]
|
10 |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Weight
|
146 g / Pcs |
|
GTIN
|
4052568141936 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: midi pneumatics (english) , Data sheet |
