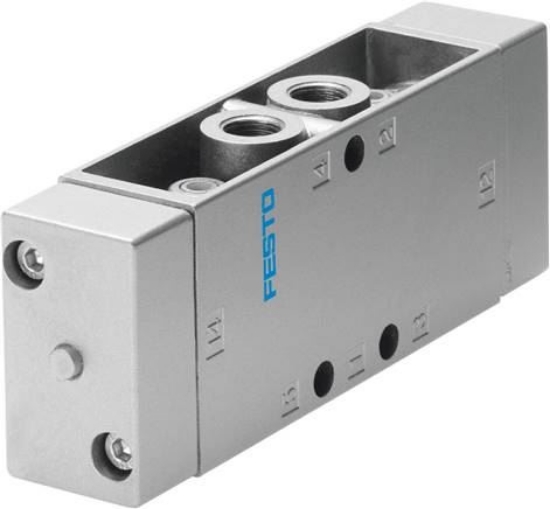

Valve function
|
5/2 bi-stable dominated |
|
Actuation type
|
pneumatic |
|
Build.width [mm]
|
30,5 |
|
Normal nominal flow [l/min]
|
1.100 |
|
Operating pressure [bar]
|
0 to 8 |
|
Construction set up
|
Plate seat |
|
Nominal width [mm]
|
7 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Control type
|
Direct |
|
Control air supply
|
external |
|
Flow direction
|
Not reversible |
|
Coverage
|
negative Überdeckung |
|
Control pressure [bar]
|
2.3 to 10 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Medium temperature [°C]
|
-10 to 60 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Product weight [g]
|
330 |
|
Fastening type
|
With throughway bores |
|
Control air 12 connection
|
G1/8 |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Pneumatic connection 3
|
G1/4 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium die casting |
|
Pitch dimension [mm]
|
32 |
|
Max. switching frequency [hz]
|
12 |
|
Shifting time um [ms]
|
12 |
|
Pneumatic connection 4
|
G1/4 |
|
Pneumatic connection 5
|
G1/4 |
|
Protection category
|
IP65 |
|
Control air 14 connection
|
G1/8 |
|
ATEX gas category
|
II 2G |
|
Ex ignition protection type gas
|
Ex h IIC T4 Gb |
|
ATEX dust category
|
II 2D |
|
Ex ignition protection type dust
|
Ex h IIIC T130°C Db |
|
Ex ambient temperature
|
-10°C <= Ta <= +60°C |
|
CE certificate (see declaration of conformity)
|
to EU EX protection directive (ATEX) |
|
Breathing opening connection
|
M5 |
|
Weight
|
330 g / Pcs |
|
GTIN
|
4052568170684 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet |
