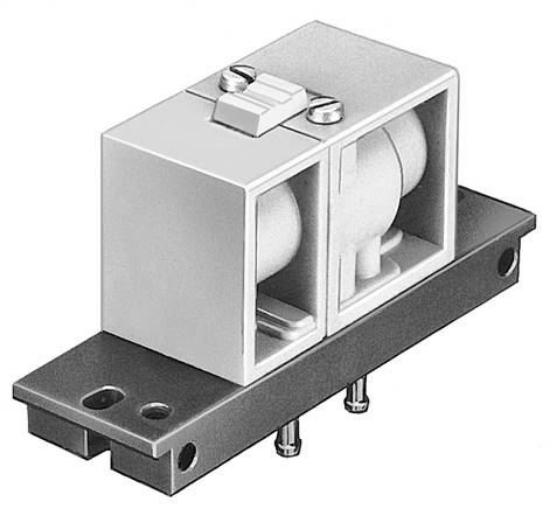

Valve function
|
3/2 bistable |
|
Normal nominal flow [l/min]
|
100 |
|
Operating pressure [bar]
|
-0.9 to 8 |
|
Construction set up
|
Piston pusher |
|
Nominal width [mm]
|
2,5 |
|
Shifting time um [ms]
|
7 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
ambient temperature [°C]
|
-10 to 60 |
|
Product weight [g]
|
75 |
|
Fastening type
|
on connection plate |
|
Support air control connection 12
|
PK-3 |
|
Support air control connection 14
|
PK-3 |
|
Pneumatic connection 1
|
PK-3 |
|
Pneumatic connection 4
|
PK-3 |
|
Pneumatic connection 5
|
PK-3 |
|
Material information
|
LABS containing materials included |
|
Connection plate material
|
brass |
|
Seals material
|
NBR |
|
Housing material
|
plastic |
|
Weight
|
75 g / Pcs |
|
GTIN
|
4052568002282 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: M5 Compact System (english) , Data sheet |
