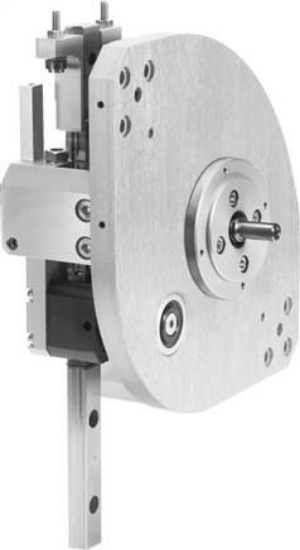

Working stroke [mm]
|
15 to 25 |
|
size
|
12 |
|
Max. linear stroke at 90° swivel angle
|
142/142 mm |
|
Z-stroke [mm]
|
80 to 100 |
|
Dampening
|
Silencer above buffer |
|
installation position
|
arbitrary |
|
Construction set up
|
Drive shaft |
|
Position detection
|
For proximity switch |
|
Repeatability end positions
|
±0.02 mm |
|
ambient temperature [°C]
|
0 to 60 |
|
Max. torque Mx [Nm]
|
1,5 |
|
Max. torque My [Nm]
|
1,5 |
|
Max. torque Mz [Nm]
|
1,5 |
|
Maximum usage load [KGM]
|
1,0 |
|
Max. process force in Y-direction [N]
|
35 |
|
Product weight [g]
|
2.800 |
|
Fastening type
|
With Throughway bore and centring sleeve |
|
Material information
|
Copper and PTFE-free |
|
Stoppers material
|
High-alloyed steel |
|
Spring pressure piece material
|
High-alloyed steel |
|
Base plate material
|
Aluminium wrought alloy |
|
Bracket material
|
Aluminium wrought alloy |
|
Cross-guide material
|
Quenched and tempered steel |
|
Swivel lever material
|
Case-hardening steel |
|
Backgrounds material
|
Case-hardening steel |
|
Sensor rail material
|
Aluminium wrought alloy |
|
Bar material
|
Aluminium wrought alloy |
|
Positioning screw material
|
High-alloyed steel |
|
Max. actuator torque on drive shaft [Nm]
|
12,25 |
|
Max. axial force on the drive shaft [N]
|
18 |
|
Max. radial force on drive shaft [N]
|
45 |
|
Weight
|
2.800 g / Pcs |
|
GTIN
|
4052568178819 |
|
Customs duty number
|
84798997 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: HSW (english) , Data sheet |
