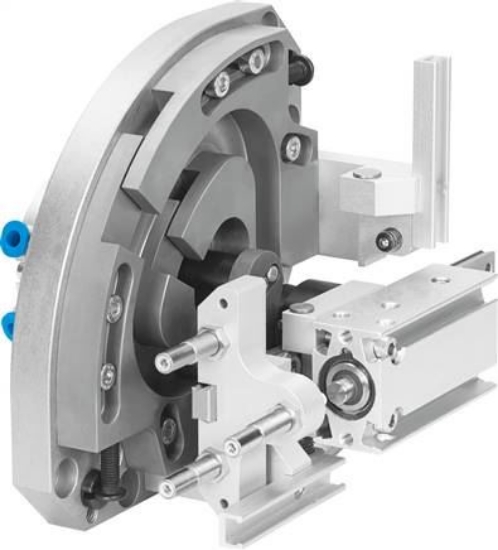

Working stroke [mm]
|
9 to 15 |
|
size
|
10 |
|
Max. linear stroke at 90° swivel angle
|
90/90 mm |
|
Z-stroke [mm]
|
80 to 100 |
|
Dampening
|
CC: Shock absorber, double-sided |
|
installation position
|
arbitrary |
|
Construction set up
|
rotary actuator |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
4 to 8 |
|
Min. cycle time [s]
|
0,6 |
|
Repeatability end positions
|
±0.02 mm |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
ambient temperature [°C]
|
0 to 60 |
|
Max. torque Mx [Nm]
|
0,6 |
|
Max. torque My [Nm]
|
0,6 |
|
Max. torque Mz [Nm]
|
0,6 |
|
Maximum usage load [KGM]
|
0,5 |
|
Max. process force in Y-direction [N]
|
30 |
|
Theoretical force at 6 bar [N]
|
30 |
|
Product weight [g]
|
1.360 |
|
Fastening type
|
With Throughway bore and centring sleeve |
|
Pneumatic connection
|
M3 |
|
Stoppers material
|
High-alloyed steel |
|
Spring pressure piece material
|
High-alloyed steel |
|
Base plate material
|
Aluminium wrought alloy |
|
Bracket material
|
Aluminium wrought alloy |
|
Cross-guide material
|
Quenched and tempered steel |
|
Swivel lever material
|
Case-hardening steel |
|
Backgrounds material
|
Case-hardening steel |
|
Sensor rail material
|
Aluminium wrought alloy |
|
Bar material
|
Aluminium wrought alloy |
|
Positioning screw material
|
High-alloyed steel |
|
Max. Z-stroke calibration position [mm]
|
10 |
|
Pneumatic connection calibration position
|
M5 |
|
Weight
|
1.360 g / Pcs |
|
GTIN
|
4052568209070 |
|
Customs duty number
|
84798997 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: HSW (english) , Data sheet |
