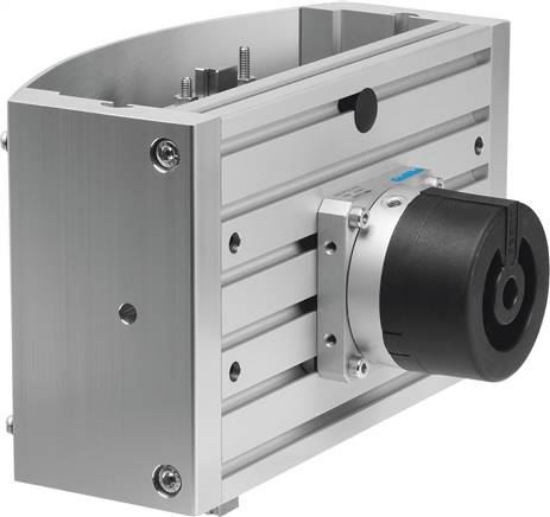

size
|
25 |
|
Y-stroke [mm]
|
130 to 170 |
|
Z-stroke [mm]
|
50 to 70 |
|
Z-stroke working stroke [mm]
|
25 |
|
Dampening
|
CC: Shock absorber, double-sided |
|
installation position
|
Guide carriage |
|
Principle of operation
|
double acting |
|
Construction set up
|
Cross-guide |
|
Position detection
|
For proximity switch |
|
Anti-twist lock / guide
|
Cross-guide |
|
Operating pressure [bar]
|
4 to 8 |
|
Min. cycle time [s]
|
1,0 |
|
Repeatability
|
±0.02 mm |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
ambient temperature [°C]
|
0 to 60 |
|
Max. torque Mx dynamic [Nm]
|
3,2 |
|
Max. torque Mx static [Nm]
|
15 |
|
Max. torque My dynamic [Nm]
|
3,2 |
|
Max. torque My static [Nm]
|
15 |
|
Max. torque Mz dynamic [Nm]
|
3,2 |
|
Max. torque Mz static [Nm]
|
15 |
|
Maximum usage load [KGM]
|
1,5 |
|
Theoretical force at 6 bar [N]
|
65 |
|
Product weight [g]
|
7.600 |
|
Fastening front unit
|
With throughway bores |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection
|
M5 |
|
Material information
|
Copper and PTFE-free |
|
Base plate material
|
Aluminium wrought alloy |
|
Cross-guide material
|
Quenched and tempered steel |
|
Side parts material
|
Aluminium wrought alloy |
|
Weight
|
7.600 g / Pcs |
|
GTIN
|
4052568167714 |
|
Customs duty number
|
84798997 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: HSP (english) , Data sheet |
