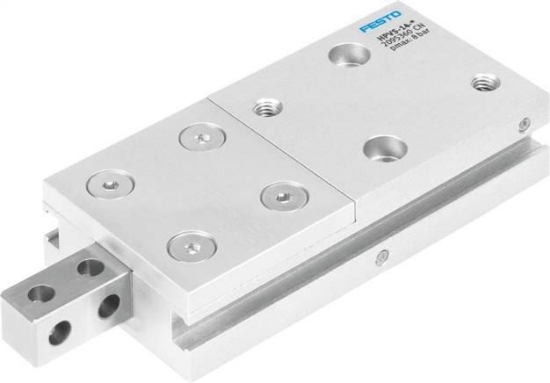

HPVS-14-20-A (2095360) Feed separator

کد سفارش تولید کننده: 2095360
مشخصات
عنوان ویژگی مقدار ویژگی
Stroke [mm] 20
Piston diameter 14 mm
Max. exchange precision [mm] 0,3
Max. tappet play Sx [mm] 0,05
Max. tappet play Sz [mm] 0,03
Max. gripper jaw play ax [deg] 0,12
Max. gripper jaw play ay [deg] 0,20
Max. gripper jaw play az [deg] 0,175
Fastening external finger throughway bores
Dampening No dampening
installation position arbitrary
Principle of operation double acting
Construction set up piston rod
Position detection For proximity switch
Anti-twist lock / guide Square guide
Operating pressure [bar] 3 to 8
Extension time [ms] 50
Retraction time [ms] 138
Repeatability [mm] 0,15
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] 5 to 60
Max. force on the finger Fz static [N] 100
Max. torque on finger Mr static [Nm] 5
Max. torque on finger Mx static [Nm] 5
Max. torque on finger My static [Nm] 5
Theoretical force at 6 bar, Return flow [N] 75
Theoretical force at 6 bar, flow [N] 90
Max. mass per external griper finger [g] 150
Product weight [g] 183
Alternative connections M5
Fastening type Selectively:
Pneumatic connection M5
Material information Copper and PTFE-free
Weight 183 g / Pcs
GTIN 4052568251314
Customs duty number 84798997
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: HPVS (english) Data sheet
