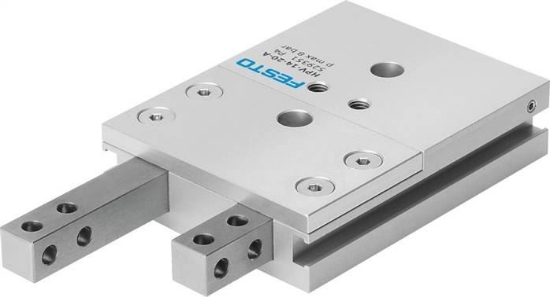

Stroke [mm]
|
20 |
|
Piston diameter
|
14 mm |
|
Max. exchange precision [mm]
|
0,3 |
|
Max. tappet play Sx [mm]
|
0,05 |
|
Max. tappet play Sz [mm]
|
0,03 |
|
Max. gripper jaw play ax [deg]
|
0,12 |
|
Max. gripper jaw play ay [deg]
|
0,20 |
|
Max. gripper jaw play az [deg]
|
0,175 |
|
Fastening external finger
|
throughway bores |
|
Dampening
|
No dampening |
|
installation position
|
arbitrary |
|
Principle of operation
|
double acting |
|
Construction set up
|
Double piston |
|
Position detection
|
For proximity switch |
|
Half cycle [ms]
|
111,5 |
|
Anti-twist lock / guide
|
Square guide |
|
Cycle time [ms]
|
223,0 |
|
Operating pressure [bar]
|
3 to 8 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
5 to 60 |
|
Max. force on the finger Fz static [N]
|
100 |
|
Max. torque on finger Mr static [Nm]
|
5 |
|
Max. torque on finger Mx static [Nm]
|
5 |
|
Max. torque on finger My static [Nm]
|
5 |
|
Theoretical force at 6 bar, Return flow [N]
|
75 |
|
Theoretical force at 6 bar, flow [N]
|
90 |
|
Max. mass per external griper finger [g]
|
150 |
|
Product weight [g]
|
290 |
|
Alternative connections
|
M5 |
|
Fastening type
|
Selectively: |
|
Pneumatic connection
|
M5 |
|
Material information
|
Copper and PTFE-free |
|
Weight
|
290 g / Pcs |
|
GTIN
|
4052568015657 |
|
Customs duty number
|
84798997 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: HPV (english) , Data sheet |
