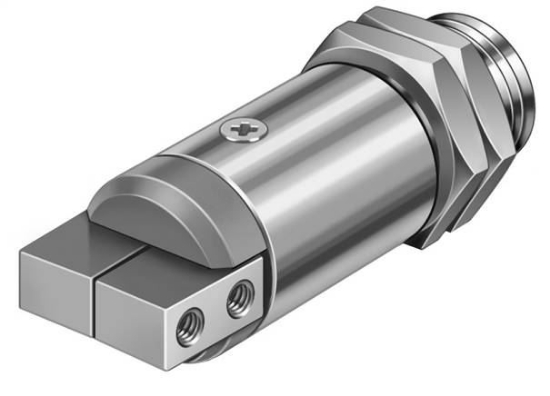

size
|
8 |
|
Max. gripper jaw play ax, ay [deg]
|
0,5 |
|
Max. gripper jaw play Sz [mm]
|
0,03 |
|
Max. opening angle [deg]
|
14,0 |
|
Repeatability grippers [mm]
|
<= 0,02 mm |
|
Quantity Gripper jaws
|
2 |
|
Principle of operation
|
single action |
|
Gripper function
|
elbow |
|
Construction set up
|
Inclined plane |
|
Position detection
|
without |
|
Operating pressure [bar]
|
2 to 8 |
|
Max. working frequency gripper [hz]
|
4 |
|
Min. opening time a 6 bar [ms]
|
1,0 |
|
Min. closing time at 6 bar [ms]
|
2,5 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
5 to 60 |
|
Spring force torque [Nm]
|
0,0055 |
|
Max. force on gripper jaws Fz static [N]
|
7 |
|
Max. torque on gripper jaws Mx static [Nm]
|
0,2 |
|
Max. torque on gripper jaws My static [Nm]
|
0,2 |
|
Max. torque on gripper jaws Mz static [Nm]
|
0,2 |
|
Product weight [g]
|
14 |
|
Fastening type
|
With locking nut |
|
Pneumatic connection
|
M3 |
|
Material information
|
Copper and PTFE-free |
|
Cover cap material
|
POM |
|
Housing material
|
High-alloyed stainless steels |
|
Gripper jaws material
|
High-alloyed steel |
|
Open total gripping force at 6 bar [Ncm]
|
24 |
|
Weight
|
14 g / Pcs |
|
GTIN
|
4052568144616 |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: HGWM (english) , Data sheet |
