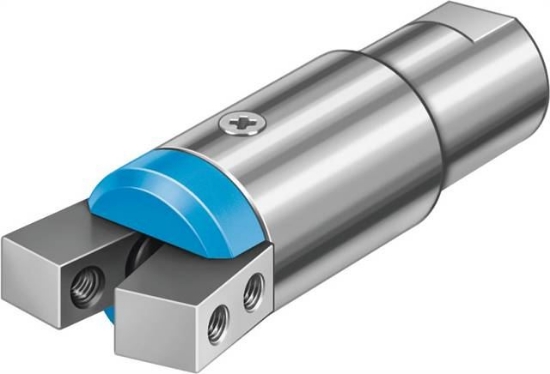

size
|
8 |
Max. gripper jaw play ax, ay [deg]
|
0,5 |
Max. gripper jaw play Sz [mm]
|
0,03 |
Max. opening angle [deg]
|
17,0 |
Repeatability grippers [mm]
|
<= 0,02 mm |
Quantity Gripper jaws
|
2 |
Principle of operation
|
single action |
Gripper function
|
elbow |
Construction set up
|
Inclined plane |
Position detection
|
without |
Operating pressure [bar]
|
2 to 8 |
Max. working frequency gripper [hz]
|
4 |
Min. opening time a 6 bar [ms]
|
2,7 |
Min. closing time at 6 bar [ms]
|
1,2 |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
ambient temperature [°C]
|
5 to 60 |
Spring force torque [Nm]
|
0,0050 |
Close total gripping force at 6 bar [Ncm]
|
22 |
Max. force on gripper jaws Fz static [N]
|
7 |
Max. torque on gripper jaws Mx static [Nm]
|
0,2 |
Max. torque on gripper jaws My static [Nm]
|
0,2 |
Max. torque on gripper jaws Mz static [Nm]
|
0,2 |
Product weight [g]
|
13 |
Fastening type
|
clamped |
Pneumatic connection
|
M3 |
Material information
|
Copper and PTFE-free |
Cover cap material
|
POM |
Housing material
|
High-alloyed stainless steels |
Gripper jaws material
|
High-alloyed steel |
Weight
|
13 g / Pcs |
GTIN
|
4052568144593 |
Customs duty number
|
84799070 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: HGWM (english) , Data sheet |
