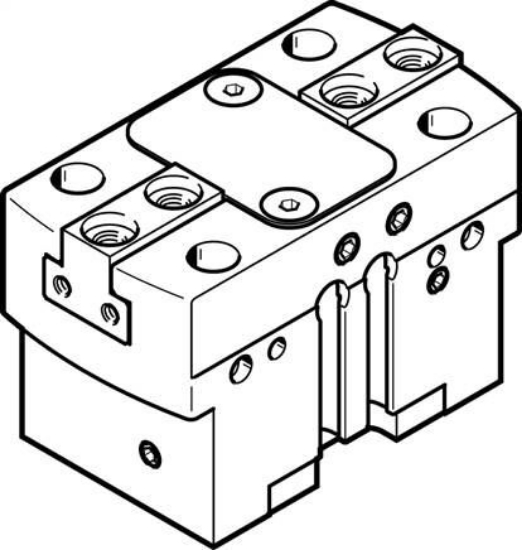

HGPT-20-A-B-F (560201) گریپر موازی پنوماتیک فستو

کد سفارش تولید کننده: 560201
مشخصات
عنوان ویژگی مقدار ویژگی
size 20
Stroke per gripper jaw [mm] 2,0
Max. exchange precision [mm] <= 0,2 mm
Max. gripper jaw play ax, ay [deg] <= 0,1 deg
Max. gripper jaw play Sz [mm] <= 0,02 mm
Rotational symmetry [mm] <= 0,2 mm
Repeatability grippers [mm] <= 0,04 mm
Quantity Gripper jaws 2
installation position arbitrary
Principle of operation double acting
Gripper function Parallel
Construction set up Inclined plane
Position detection For proximity switch
Open total gripping force at 6 bar [N] 344
Close total gripping force at 6 bar [N] 322
Operating pressure [bar] 3 to 8
Operating pressure blocking air [bar] 0 to 0.5
Max. working frequency gripper [hz] <= 3 Hz
Min. opening time a 6 bar [ms] 28
Min. closing time at 6 bar [ms] 31
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
Protection category IP40
ambient temperature [°C] 5 to 60
Open gripper jaws at gripping force of 6 bar [N] 172
Close gripper jaws at gripping force at 6 bar [N] 161
Mass inertia [Kilogramm ] 0,344
Max. force on gripper jaws Fz static [N] 700
Max. torque on gripper jaws Mx static [Nm] 15
Max. torque on gripper jaws My static [Nm] 15
Max. torque on gripper jaws Mz static [Nm] 8
Lubrication interval guide elements [] 5
Max. mass per external griper finger [g] 50
Product weight [g] 135
Fastening type With Throughway bore and dowel pin
Pneumatic connection blocking air M5
Pneumatic connection M5
Material information Copper and PTFE-free
Cover cap material High-alloyed stainless steels
Housing material aluminium
Gripper jaws material hardened
Weight 135 g / Pcs
GTIN 4052568206666
Customs duty number 84799070
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: HGPT-B (english) Data sheet
