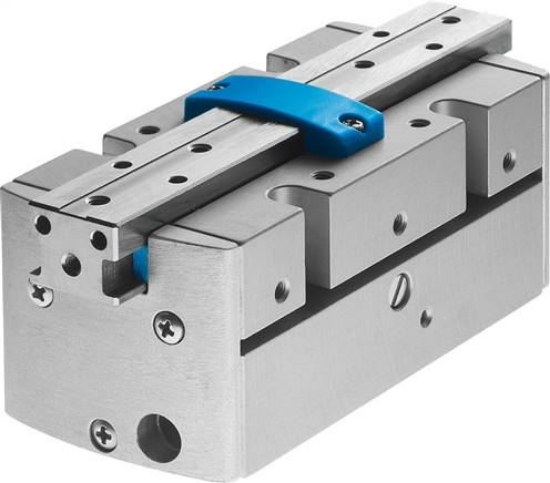

HGPP-12-A-G1 (187868) گریپر موازی پنوماتیک فستو

کد سفارش تولید کننده: 187868
مشخصات
عنوان ویژگی مقدار ویژگی
size 12
Stroke per gripper jaw [mm] 2,5
Max. exchange precision [mm] 0,1
Repeatability grippers [mm] <= 0,02 mm
Quantity Gripper jaws 2
Principle of operation double acting
Gripper function Parallel
Construction set up Toothed rack/pinion
Position detection For Hall sensors
Operating pressure [bar] 5 to 8
Max. working frequency gripper [hz] 4
Min. opening time a 6 bar [ms] 30
Min. closing time at 6 bar [ms] 70
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] 5 to 60
Max. force on gripper jaws Fz static [N] 70
Max. torque on gripper jaws Mx static [Nm] 3,0
Max. torque on gripper jaws My static [Nm] 3,0
Max. torque on gripper jaws Mz static [Nm] 3,0
Max. mass per external griper finger [g] 100
Product weight [g] 173
Fastening type with female thread
Pneumatic connection M3
Material information Copper and PTFE-free
Cover cap material POM
Housing material Aluminium wrought alloy
Gripper jaws material Aluminium wrought alloy
Gripping force safety When opening
Weight 173 g / Pcs
GTIN 4052568148270
Customs duty number 84799070
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: HGPP (english) Data sheet
