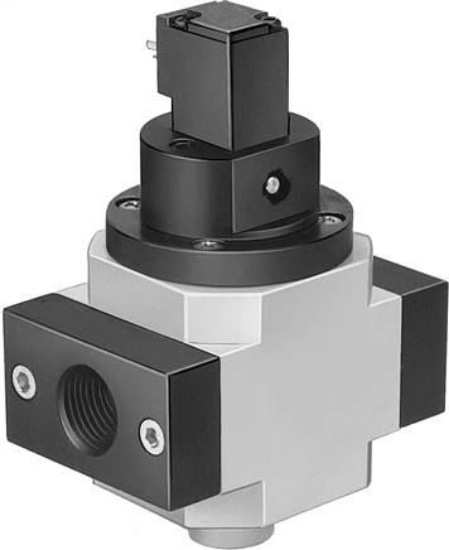

HEE-3/4-D-MIDI-24 (172947) شیر قطع و وصل اصلی جریان هوای فشرده فستو

کد سفارش تولید کننده: 172947
مشخصات
عنوان ویژگی مقدار ویژگی
Operating pressure [bar] 2.5 to 16
Coil characteristic value 24 V DC: 3 W
Permitted voltage oscillations ± 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Material information RoHs compliant
Maritime classification see Certificate
Air purity class at the output Compressed air to ISO 8573-1:2010 [7:4:4]
electrical connection: Wiring diagram Form C acc. to EN 175301-803
Construction set up Piston pusher
Actuation type Electrical
Sealing principle Soft
Exhaust function Cannot be throttled
Hand assist actuation Ratcheting
Reset mode Mechanical spring
Control type pilot operated
Valve function 3/2 closed monostable
C-value [] 17,3
b-value 0.41
Normal nominal flow [l/min] 3.800
Power-on time 100%
Corrosion resistant class KBK 2 - moderate corrosion stress
Medium temperature [°C] -10 to 60
ambient temperature [°C] -10 to 60
Fastening type pipe installation
installation position arbitrary
Flow direction Not reversible
Product weight [g] 500
Pneumatic connection 1 G3/4
Pneumatic connection 2 G3/4
Pneumatic connection 3 G1/4
Signal condition display With Accessories
Seals material NBR
Housing material Aluminium die casting
Weight 500 g / Pcs
GTIN 4052568140700
Customs duty number 84812090
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: On-off/soft-start valves, D series (english) Data sheet
