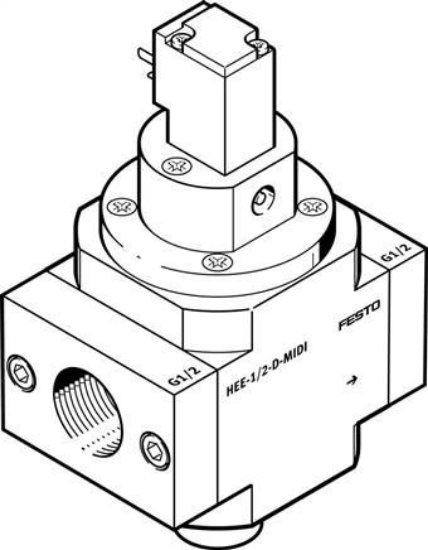

Operating pressure [bar]
|
2.5 to 16 |
|
Coil characteristic value
|
230 V AC: 50/60 Hz, pull-in power 5 VA, holding power 3.7 VA |
|
Permitted voltage oscillations
|
-14 % / +10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Material information
|
RoHs compliant |
|
Air purity class at the output
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
electrical connection:
|
Wiring diagram Form C acc. to EN 175301-803 |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Construction set up
|
Piston pusher |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Soft |
|
Exhaust function
|
Cannot be throttled |
|
Hand assist actuation
|
Ratcheting |
|
Reset mode
|
Mechanical spring |
|
Control type
|
pilot operated |
|
Valve function
|
3/2 closed monostable |
|
C-value []
|
17,3 |
|
b-value
|
0.41 |
|
Normal nominal flow [l/min]
|
3.800 |
|
Power-on time
|
100% |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
-10 to 60 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Fastening type
|
pipe installation |
|
installation position
|
arbitrary |
|
Flow direction
|
Not reversible |
|
Product weight [g]
|
500 |
|
Pneumatic connection 1
|
G3/4 |
|
Pneumatic connection 2
|
G3/4 |
|
Pneumatic connection 3
|
G1/4 |
|
Signal condition display
|
With Accessories |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium die casting |
|
Weight
|
500 g / Pcs |
|
GTIN
|
4052568013608 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: On-off/soft-start valves, D series (english) , Data sheet |
