Valve function
|

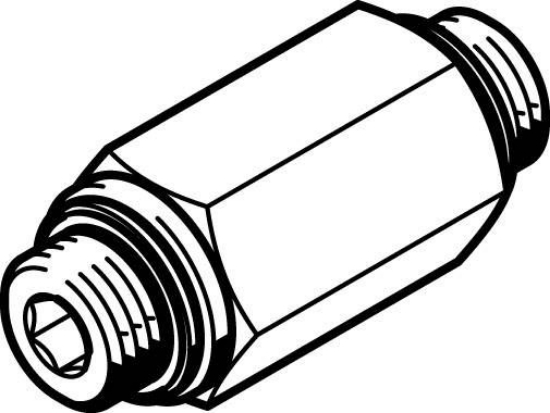

Check valve function |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Fastening type
|
Screwable |
|
Operating pressure [bar]
|
0.4 to 12 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Housing material
|
Aluminium wrought alloy |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
installation position
|
arbitrary |
|
Normal nominal flow 1 -> 2 from 6 to 5 bar [l/min]
|
1.000 |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-10 to 60 |
|
Medium temperature [°C]
|
-10 to 60 |
|
control medium
|
LX1 |
|
Max. tightening torque [Nm]
|
11 |
|
Product weight [g]
|
25,4 |
|
Material information
|
Copper and PTFE-free |
|
Seals material
|
NBR |
|
Weight
|
25,4 g / Pcs |
|
GTIN
|
4052568002398 |
|
Customs duty number
|
84813099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Non-return valves (english) , Data sheet |
