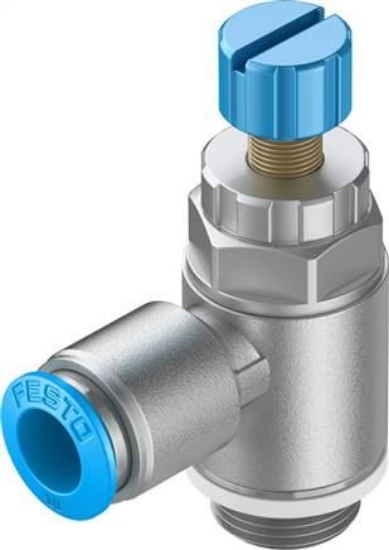

GRLA-3/8-QS-10-RS-D (534343) فلو کنترل سرجکی فستو

کد سفارش تولید کننده: 534343
مشخصات
عنوان ویژگی مقدار ویژگی
Valve function Throttle blowback function
Pneumatic connection 1 QS-10
Pneumatic connection 2 G3/8
Setting element knurled screw
Fastening type Screwable
Normal nominal flow in one-way flow control [l/min] 900
Normal nominal flow in check valve direction [l/min] 540 to 975
Operating pressure [bar] 0.2 to 10
ambient temperature [°C] -10 to 60
installation position arbitrary
Normal flow In one-way flow control 6 -> 0 bar [l/min] 1400
Normal flow In check valve direction 6 -> 0 bar [l/min] 1160 to 1620
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [°C] -10 to 60
Maritime classification see Certificate
Product weight [g] 72,0
Material information RoHs compliant
Seals material NBR
Regulation screw material High-alloyed stainless steels
Swivel connection material Zinc pressure cast
Operating pressure complete temperature range [bar] 0.2 to 10
Banjo bolt material Aluminium wrought alloy
Bearing temperature [°C] -10 to 40
Nominal tightening torque [Nm] 10,0
Sleeve material POM
Knurled head material Aluminium wrought alloy
Weight 72,0 g / Pcs
GTIN 4052568086848
Customs duty number 84812090
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: One-way flow control valves (english) Data sheet
