installation position
|
arbitrary |
|
Construction set up
|

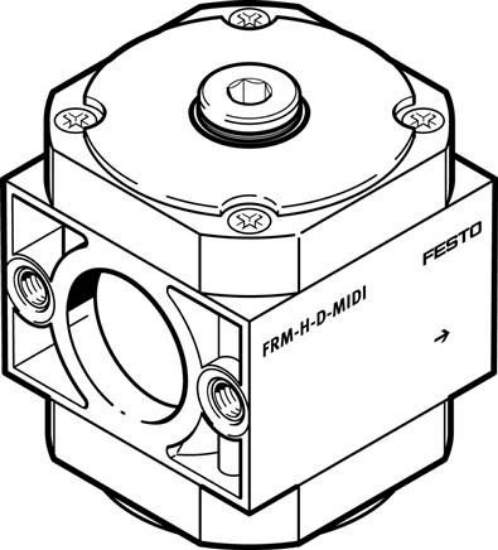

Branching module |
|
Operating pressure [bar]
|
0.2 to 16 |
|
Normal nominal flow in main flow direction 1 -> 2 [l/min]
|
5.100 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-10 to 60 |
|
Air purity class at the output
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Medium temperature [°C]
|
-10 to 60 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Maritime classification
|
see Certificate |
|
Product weight [g]
|
386 |
|
Pneumatic connection 3
|
G1/2 |
|
Pneumatic connection 4
|
G1/4 |
|
Material information
|
Copper and PTFE-free |
|
Housing material
|
Aluminium die casting |
|
Weight
|
386 g / Pcs |
|
GTIN
|
4052568074432 |
|
Customs duty number
|
84813099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Branching modules/Distributor blocks, D series (english) , Data sheet |
