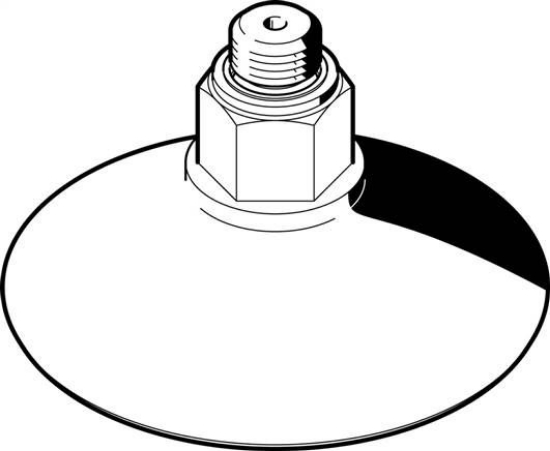

Min. workpiece radius R [mm]
|
100 |
|
Nominal width [mm]
|
5,5 |
|
Suction diameter [mm]
|
80 |
|
Suction volumes [cm³]
|
28,600 |
|
installation position
|
arbitrary |
|
Suction shape
|
Round deep |
|
Operating pressure [bar]
|
-0,95 |
|
Nominal operating pressure [bar]
|
-0,7 |
|
Operating medium
|
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
-10 to 80 |
|
Holding force for nominal operating pressure [N]
|
245,00 |
|
Shear force for nominal operating pressure [N]
|
99,0 |
|
Product weight [g]
|
60,0 |
|
Fastening type
|
Via vacuum connection |
|
vacuum connection
|
G1/4 |
|
colour
|
#E63312 |
|
Shore hardness
|
72 ± 5 |
|
Stud material
|
Aluminium wrought alloy |
|
Material information
|
Copper and PTFE-free |
|
Suction cups material
|
Vulkollan® |
|
High balance suction cup fixation [mm]
|
7,5 |
|
Construction set up
|
Round bell shaped |
|
Pull-off force at 70% vacuum [N]
|
245 |
|
Max. tightening torque fastening thread / fixing thread [Nm]
|
11 |
|
Weight
|
60,0 g / Pcs |
|
GTIN
|
4052568083168 |
|
Customs duty number
|
84879090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ESS/ESV (english) , Data sheet |
