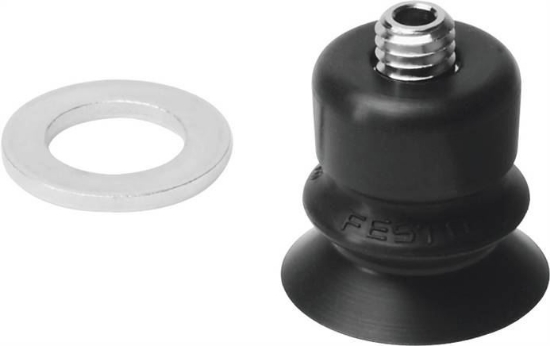

Min. workpiece radius R [mm]
|
40 |
|
Nominal width [mm]
|
3,0 |
|
Suction diameter [mm]
|
20 |
|
Suction volumes [cm³]
|
1,600 |
|
Connection position
|
top |
|
installation position
|
arbitrary |
|
Allocate suction cup fixation
|
Size 4 |
|
Suction shape
|
Round folding bellows1.5 times |
|
Operating pressure [bar]
|
0 to 0.95 |
|
Nominal operating pressure [bar]
|
-0,7 |
|
Operating medium
|
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Food compatibility
|
See expanded material information |
|
ambient temperature [°C]
|
-10 to 70 |
|
Holding force for nominal operating pressure [N]
|
12,90 |
|
Shear force for nominal operating pressure [N]
|
9,5 |
|
Product weight [g]
|
6,7 |
|
Fastening type
|
Via vacuum connection |
|
vacuum connection
|
M6 |
|
colour
|
#000000 |
|
Shore hardness
|
50 ± 5 |
|
Stud material
|
brass nickel-plated |
|
Material information
|
Copper and PTFE-free |
|
Suction cups material
|
NBR |
|
Height balance suction cup [mm]
|
6,0 |
|
Weight
|
6,7 g / Pcs |
|
GTIN
|
4052568042486 |
|
Customs duty number
|
84879090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ESS/ESV (english) , Data sheet |
