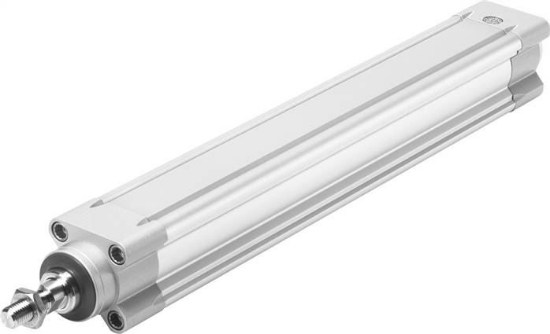

Working stroke [mm]
|
200 |
|
size
|
32 |
|
Stroke [mm]
|
200 |
|
Piston rod thread
|
M10x1,25 |
|
Reversing play [Mikrometer]
|
100 |
|
Spindle diameter [mm]
|
12 |
|
Spindle pitch [Millimeter]
|
2,5 |
|
Max. twist angle of the piston rod ± [deg]
|
0,25 |
|
Based on standard
|
ISO 15552 |
|
installation position
|
arbitrary |
|
Piston rod end
|
Male thread |
|
Motor type
|
Step motor |
|
Position detection
|
For proximity switch |
|
Construction set up
|
Electro-cylinder with leadscrew spindle |
|
Spindle type
|
Sliding thread |
|
Anti-twist lock / guide
|
Slide guided |
|
Max. acceleration [Meter pro ]
|
2,5 |
|
Max. speed [m/s]
|
0,125 |
|
Repeatability
|
±0.05 mm |
|
Power-on time
|
100% |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Relative humidity
|
0 - 95 % |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
0 to 60 |
|
Max. actuator torque [Nm]
|
1,1 |
|
Max. radial force on drive shaft [N]
|
115 |
|
Max. feed force Fx [N]
|
1.000 |
|
Empty run actuator torque [Nm]
|
0,10 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
1,6373 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
0,00160 |
|
Mass inertia JO [Kilogramm ]
|
0,01640 |
|
Moving mass at 0 mm stroke [g]
|
198 |
|
Weight supplement per 10 mm stroke [g]
|
34 |
|
Base weight at 0 mm stroke [g]
|
667 |
|
Supplement moved mass per 10 mm stroke [g]
|
9 |
|
Fastening type
|
With female thread |
|
Interface code actuator
|
D32 |
|
Material information
|
LABS containing materials included |
|
Cover material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Screws material
|
Steel |
|
Spindle nut material
|
Roller bearing steel |
|
Spindle material
|
Roller bearing steel |
|
Cylinder tube material
|
Aluminium wrought alloy |
|
Weight
|
1,4 kg / Pcs |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ESBF (english) , Data sheet |
