size
|
11 |
|

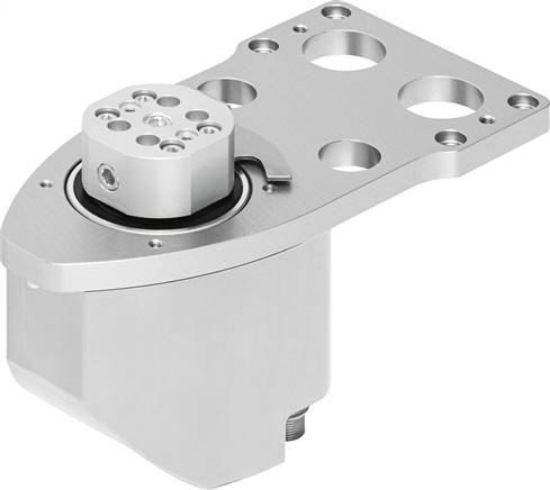

Construction set up
|
Electro-mechanical rotary module |
|
installation position
|
arbitrary |
|
Angle of rotation
|
Endless |
|
Gear ratio
|
30:1 |
|
Nominal torque [Nm]
|
1,80 |
|
Repeatability
|
±0.01 ° |
|
Max. axial force [N]
|
300 |
|
Product weight [g]
|
1.320 |
|
Power-on time
|
100% |
|
Nominal current motor [A]
|
0,74 |
|
Motor type
|
Servo motor |
|
Nominal width [mm]
|
4 |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Normal nominal flow [l/min]
|
350 |
|
Max. output speed [Umdrehung ]
|
200 |
|
Nominal operating voltage AC [V]
|
230 |
|
Nominal performance motor [W]
|
22,1 |
|
Peak current [A]
|
1,50 |
|
Max. tilting torque static [Nm]
|
40 |
|
Peak torque [Nm]
|
4,5 |
|
Permitted load mass moment of inertia [Kilogramm ]
|
0,0060 |
|
Pneumatic connection
|
G1/8 |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
0 to 40 |
|
Material information
|
RoHs compliant |
|
Weight
|
1.320 g / Pcs |
|
Customs duty number
|
85015100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EXCT (english) , Data sheet |
