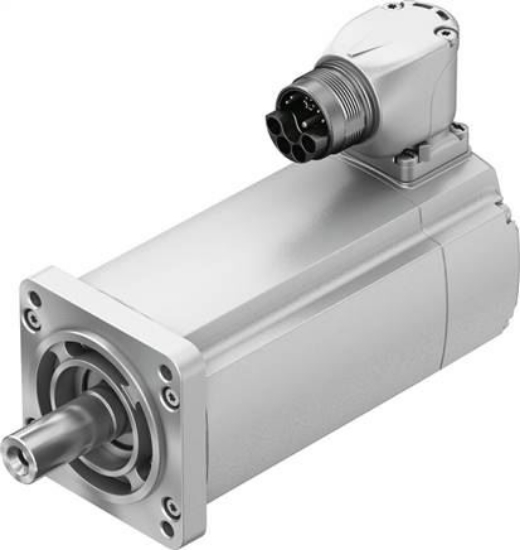

ambient temperature [°C]
|
-15 bis 40 |
|
Information about ambient temperature
|
bis 80°C mit Derating -1,5%/°C |
|
Max. setup height [MTR]
|
4.000 |
|
Information about max. setup height
|
ab 1.000 m nur mit Derating von -1,0% pro 100 m |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Relative humidity
|
0 - 90 % |
|
Complies to standard
|
IEC 60034 |
|
Heat class to EN 60034-1
|
F |
|
Max. Wicklungstemperatur [°C]
|
155 |
|
Measurement class according to DIN 60034-1
|
S1 |
|
Temperature monitoring
|
Digitale Motortemperaturübertragung per EnDat 2.2 |
|
Motorbauform nach EN 60034-7
|
IM B5 |
|
installation position
|
arbitrary |
|
Protection category
|
IP40 |
|
Information about protection category
|
IP40 Motorwelle ohne RWDR |
|
Rundlaufgenauigkeit, Koaxialität, Planlauf nach DIN SPEC 42955
|
N |
|
Wuchtgüte
|
G 2,5 |
|
Rastmoment
|
< 1,0% vom Spitzendrehmoment |
|
Lebensdauer Lager bei Nennbedingungen [Stunde]
|
20.000 |
|
Interface code Motor out
|
60P |
|
Electrical connection 1, connection type
|
Hybrid plug |
|
Electrical connection 1, connection technology
|
M23x1 |
|
Electrical connection 1, number of pins / wires
|
15 |
|
Degree of contamination
|
2 |
|
Material information
|
LABS containing materials included |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
CE certificate (see declaration of conformity)
|
nach EU-EMV-Richtlinie |
|
Permission
|
RCM mark |
|
Certified awarding point
|
UL E342973 |
|
Nominal operating voltage DC [V]
|
325 |
|
Winding switching type
|
Star internal |
|
Polpaarzahl
|
5 |
|
Standstill torque [Nm]
|
1,24 |
|
Nominal torque [Nm]
|
1,10 |
|
Peak torque [Nm]
|
3,4 |
|
Nominal speed [Umdrehung ]
|
3.000 |
|
Max. speed [Umdrehung ]
|
6.800 |
|
Max. mechanische Drehzahl [Umdrehung ]
|
16.000 |
|
Nominal performance motor [W]
|
350 |
|
Continuous standstill current [A]
|
2,7 |
|
Nominal current motor [A]
|
2,4 |
|
Peak current [A]
|
11,0 |
|
Motor constant [Newtonmete]
|
0,45 |
|
Stillstandsdrehmomentkonstante [Newtonmete]
|
0,53 |
|
Voltage constant phase-phase [Millivolt ]
|
32,0 |
|
Winding resistance phase-phase [Ohm]
|
4,85 |
|
Winding inductivity phase-phase []
|
11 |
|
Wicklung Längsinduktivität Ld (Phase) []
|
7,0 |
|
Wicklung Querinduktivität Lq (Phase) []
|
8,2 |
|
Elektrische Zeitkonstante [ms]
|
2,7 |
|
Thermische Zeitkonstante [min]
|
41 |
|
Thermischer Widerstand [Therm.Wide]
|
1,1 |
|
Messflansch
|
250 x 250 x 15 mm, Stahl |
|
Total output moment of gyration [Kilogramm ]
|
0,286 |
|
Product weight [g]
|
1.530 |
|
Permitted axial shaft loading [N]
|
70 |
|
Permitted radial shaft loading [N]
|
350 |
|
Rotor position transducer
|
Encoder absolut multi turn |
|
Rotorlagegeber Herstellerbezeichnung
|
EQI 1131 |
|
Rotorlagegeber absolut erfassbare Umdrehungen
|
4096 |
|
Rotor position transducer interface
|
EnDat 22 |
|
Rotor position transducer measurement principle
|
Inductive |
|
Rotorlagegeber Betriebsspannung DC [V]
|
5 |
|
Rotorlagegeber Betriebsspannungsbereich DC [V]
|
3,6 bis 14 |
|
Rotorlagegeber Positionswerte pro Umdrehung
|
524288 |
|
Rotor position transducer resolution [Bit]
|
19 |
|
Rotorlagegeber Systemgenauigkeit Winkelmessung []
|
-120 bis 120 |
|
MTTF, part component
|
190 Jahre, Rotorlagegeber |
|
MTTFd, part component
|
380 Jahre, Rotorlagegeber |
|
Weight
|
1.530 g / Pcs |
|
Customs duty number
|
85015100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EMMT-AS (english) , Data sheet |
