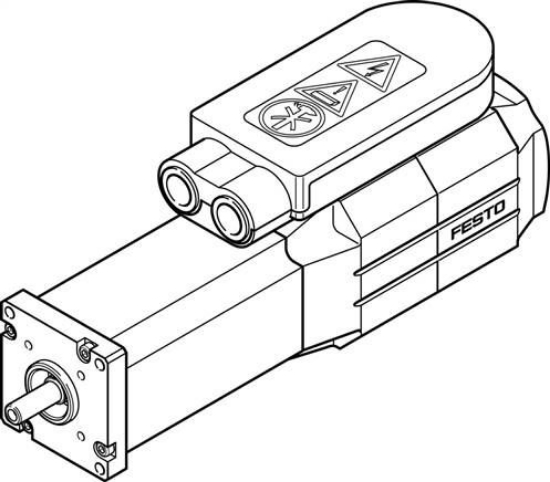

ambient temperature [°C]
|
-10 to 40 |
Bearing temperature [°C]
|
-20 to 60 |
Relative humidity
|
0 - 90 % |
Complies to standard
|
IEC 60034 |
Insulation protection class
|
F |
Measurement class according to DIN 60034-1
|
S1 |
Temperature monitoring
|
PTC resistance |
Protection category
|
IP54 |
Electrical connection technology
|
Plug |
Material information
|
RoHs compliant |
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
CE certificate (see declaration of conformity)
|
to EU EMC directive |
Permission
|
RCM mark |
Nominal operating voltage DC [V]
|
360 |
Nominal voltage DC [V]
|
360 |
Winding switching type
|
Star internal |
Standstill torque [Nm]
|
0,16 |
Nominal torque [Nm]
|
0,14 |
Peak torque [Nm]
|
0,50 |
Nominal speed [Umdrehung ]
|
9.000 |
Max. speed [Umdrehung ]
|
23.040 |
Nominal performance motor [W]
|
135 |
Nominal current motor [A]
|
0,83 |
Peak current [A]
|
3,3 |
Motor constant [Newtonmete]
|
0,172 |
Voltage constant phase-phase [Millivolt ]
|
11,00 |
Winding resistance phase-phase [Ohm]
|
20,500 |
Winding inductivity phase-phase []
|
5,180 |
Total output moment of gyration [Kilogramm ]
|
0,033 |
Product weight [g]
|
920 |
Permitted axial shaft loading [N]
|
12 |
Permitted radial shaft loading [N]
|
78 |
Rotor position transducer
|
Encoder absolut single turn |
Rotor position transducer interface
|
EnDat 21 |
Rotor position transducer measurement principle
|
Inductive |
MTTF, part component
|
4469 years, holding brake |
MTTFd, part component
|
152 years, rotor position sensor |
Holding torque brake [Nm]
|
0,4 |
Operating voltage DC brakes [V]
|
24 |
Power consumption brake [W]
|
6,2 |
Mass inertia Brake [Kilogramm ]
|
0,010 |
Switching play holding brake
|
5 million empty actuation (without frictional work!) |
Shaft design feather key
|
DIN 6885 |
Rotor position transducer resolution [Bit]
|
18 |
Weight
|
920 g / Pcs |
GTIN
|
4052568242299 |
Customs duty number
|
85013100 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: EMMS-AS (english) , Data sheet |
