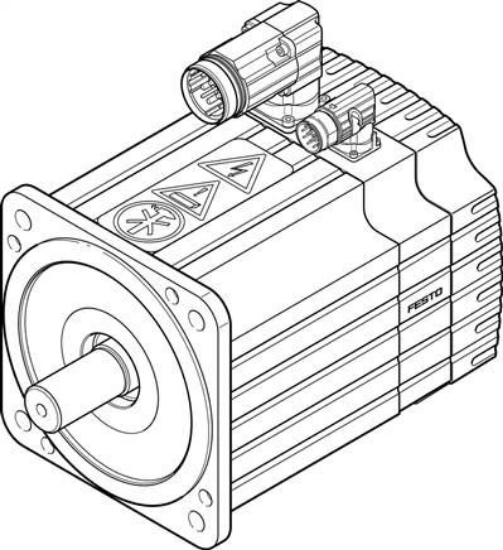

ambient temperature [°C]
|
-10 to 40 |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Relative humidity
|
0 - 90 % |
|
Complies to standard
|
IEC 60034 |
|
Insulation protection class
|
F |
|
Measurement class according to DIN 60034-1
|
S1 |
|
Temperature monitoring
|
PTC resistance |
|
Protection category
|
IP54 |
|
Electrical connection technology
|
Plug |
|
Material information
|
RoHs compliant |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Permission
|
RCM mark |
|
Nominal operating voltage DC [V]
|
565 |
|
Nominal voltage DC [V]
|
565 |
|
Winding switching type
|
Star internal |
|
Standstill torque [Nm]
|
26,20 |
|
Nominal torque [Nm]
|
17,47 |
|
Peak torque [Nm]
|
80,00 |
|
Nominal speed [Umdrehung ]
|
3.000 |
|
Max. speed [Umdrehung ]
|
5.300 |
|
Nominal performance motor [W]
|
5.490 |
|
Nominal current motor [A]
|
14,43 |
|
Peak current [A]
|
77,2 |
|
Motor constant [Newtonmete]
|
1,211 |
|
Voltage constant phase-phase [Millivolt ]
|
75,40 |
|
Winding resistance phase-phase [Ohm]
|
0,283 |
|
Winding inductivity phase-phase []
|
3,070 |
|
Total output moment of gyration [Kilogramm ]
|
55,700 |
|
Product weight [g]
|
22.200 |
|
Permitted axial shaft loading [N]
|
250 |
|
Permitted radial shaft loading [N]
|
940 |
|
Rotor position transducer
|
Resolver |
|
Rotor position transducer interface
|
SIN/COs analogue signals |
|
Rotor position transducer measurement principle
|
Inductive |
|
MTTF, part component
|
114 years, rotor position sensor |
|
MTTFd, part component
|
228 years, rotor position sensor |
|
Holding torque brake [Nm]
|
30,0 |
|
Operating voltage DC brakes [V]
|
24 |
|
Power consumption brake [W]
|
17,0 |
|
Mass inertia Brake [Kilogramm ]
|
3,600 |
|
Switching play holding brake
|
5 million empty actuation (without frictional work!) |
|
Weight
|
22.200 g / Pcs |
|
GTIN
|
4052568242459 |
|
Customs duty number
|
85015220 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EMMS-AS (english) , Data sheet |
