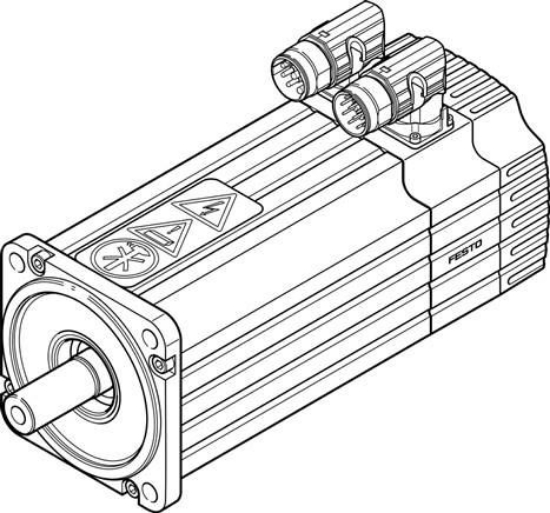

ambient temperature [°C]
|
-40 to 40 |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Relative humidity
|
0 - 90 % |
|
Complies to standard
|
IEC 60034 |
|
Insulation protection class
|
F |
|
Measurement class according to DIN 60034-1
|
S1 |
|
Temperature monitoring
|
PTC resistance |
|
Protection category
|
IP65 |
|
Electrical connection technology
|
Plug |
|
Material information
|
RoHs compliant |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Permission
|
RCM mark |
|
Nominal operating voltage DC [V]
|
565 |
|
Nominal voltage DC [V]
|
565 |
|
Winding switching type
|
Star internal |
|
Standstill torque [Nm]
|
8,01 |
|
Nominal torque [Nm]
|
5,63 |
|
Peak torque [Nm]
|
22,10 |
|
Nominal speed [Umdrehung ]
|
3.400 |
|
Max. speed [Umdrehung ]
|
4.030 |
|
Nominal performance motor [W]
|
2.000 |
|
Nominal current motor [A]
|
3,40 |
|
Peak current [A]
|
15,0 |
|
Motor constant [Newtonmete]
|
1,652 |
|
Voltage constant phase-phase [Millivolt ]
|
99,15 |
|
Winding resistance phase-phase [Ohm]
|
3,250 |
|
Winding inductivity phase-phase []
|
12,300 |
|
Total output moment of gyration [Kilogramm ]
|
5,240 |
|
Product weight [g]
|
7.740 |
|
Permitted axial shaft loading [N]
|
150 |
|
Permitted radial shaft loading [N]
|
570 |
|
Rotor position transducer
|
Resolver |
|
Rotor position transducer interface
|
SIN/COs analogue signals |
|
Rotor position transducer measurement principle
|
Inductive |
|
MTTF, part component
|
114 years, rotor position sensor |
|
MTTFd, part component
|
228 years, rotor position sensor |
|
Holding torque brake [Nm]
|
9,0 |
|
Operating voltage DC brakes [V]
|
24 |
|
Power consumption brake [W]
|
18,0 |
|
Mass inertia Brake [Kilogramm ]
|
0,540 |
|
Switching play holding brake
|
10 Mio. empty actuation (without friction work) |
|
Weight
|
7.740 g / Pcs |
|
GTIN
|
4052568239701 |
|
Customs duty number
|
85015220 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EMMS-AS (english) , Data sheet |
