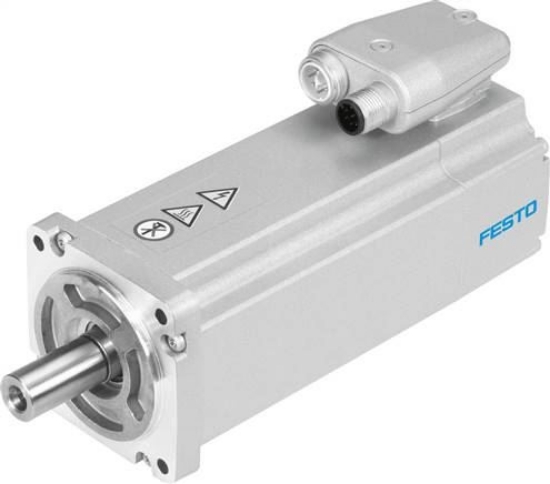

ambient temperature [°C]
|
-10 to 40 |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Relative humidity
|
0 - 90 % |
|
Complies to standard
|
IEC 60034 |
|
Insulation protection class
|
F |
|
Measurement class according to DIN 60034-1
|
S1 |
|
Protection category
|
IP21 |
|
Electrical connection technology
|
Plug |
|
Material information
|
LABS containing materials included |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Permission
|
RCM mark |
|
Nominal operating voltage DC [V]
|
360 |
|
Nominal voltage DC [V]
|
360 |
|
Winding switching type
|
Star internal |
|
Standstill torque [Nm]
|
1,50 |
|
Nominal torque [Nm]
|
1,20 |
|
Peak torque [Nm]
|
6,0 |
|
Nominal speed [Umdrehung ]
|
3.000 |
|
Max. speed [Umdrehung ]
|
4.925 |
|
Nominal performance motor [W]
|
380 |
|
Continuous standstill current [A]
|
1,8 |
|
Nominal current motor [A]
|
1,5 |
|
Peak current [A]
|
7,2 |
|
Motor constant [Newtonmete]
|
0,800 |
|
Voltage constant phase-phase [Millivolt ]
|
51,7 |
|
Winding resistance phase-phase [Ohm]
|
9,8 |
|
Winding inductivity phase-phase []
|
18,6 |
|
Total output moment of gyration [Kilogramm ]
|
0,413 |
|
Product weight [g]
|
1.850 |
|
Permitted axial shaft loading [N]
|
54 |
|
Permitted radial shaft loading [N]
|
270 |
|
Rotor position transducer
|
Safety Enc. absolute multi turn |
|
Rotor position transducer interface
|
HIPERFACE® |
|
Rotor position transducer measurement principle
|
Visual |
|
Rotor position transducer sinus / cosinus periods per rotation
|
128 |
|
Rotor position transducer resolution typical [Bit]
|
15 |
|
Rotor position transducer typical angle precision []
|
20 |
|
MTTFd, part component
|
874 years, rotor position sensor |
|
Safety Integrity Level (SIL), part components
|
SIL 2, Rotor position transducer |
|
Performance level (PL), part component
|
Category 3, performance level d, rotor bearing sensor |
|
PFHd, part component
|
1.3 x 10E-8, rotor position sensor |
|
Duration of use Tm, partial components
|
20 years, rotor position sensor |
|
Shaft design feather key
|
DIN 6885 |
|
Weight
|
1.850 g / Pcs |
|
Customs duty number
|
85015100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EMME-AS (english) , Data sheet |
