Actuator pinion effective diameter [mm]
|
28,65 |
|
Working stroke [mm]
|
100 |
|
size
|
55 |
|
V-belt bending [%]
|
0,210 |
|
V-belt separation [mm]
|
3 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|

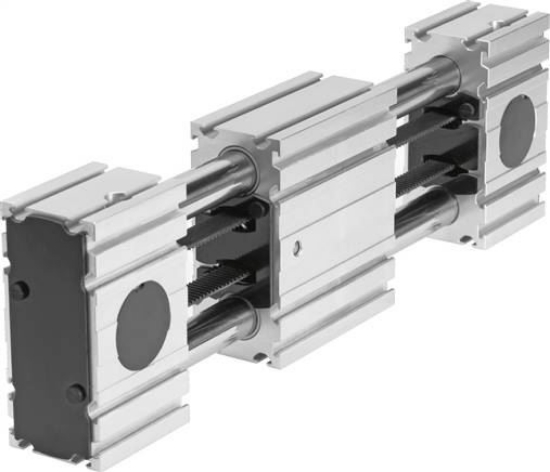

Construction set up
|
Electro-mechanical linear axis |
|
Motor type
|
Step motor |
|
Max. acceleration [Meter pro ]
|
50 |
|
Max. speed [m/s]
|
0.35 to 3 |
|
Repeatability
|
±0.1 mm |
|
Power-on time
|
100% |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
-10 to 50 |
|
Flat torque 2nd grade ly []
|
38.300 |
|
Flat torque 2nd grade lz []
|
41.178 |
|
Max. actuator torque [Nm]
|
5,00 |
|
Max. force Fy [N]
|
300 |
|
Max. force Fz [N]
|
300 |
|
Max. empty run shift resistance [N]
|
27,9 |
|
Max. feed force Fx [N]
|
350 |
|
Empty run actuator torque [Nm]
|
0,4 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
0,190 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
2,05 |
|
Feed constant [Millimeter]
|
90 |
|
Guideline running performance [km]
|
5.000 |
|
Weight supplement per 10 mm stroke [g]
|
78 |
|
Product weight [g]
|
6.220 |
|
Supplement moved mass per 10 mm stroke [g]
|
0,92 |
|
Profile material
|
Aluminium wrought alloy |
|
Material information
|
LABS containing materials included |
|
Actuator cover material
|
Aluminium wrought alloy |
|
Belt pulley material
|
High-alloyed stainless steels |
|
Carriage material
|
Aluminium wrought alloy |
|
V-belt clamping body material
|
Beryllium bronze |
|
V-belt material
|
Polychloroprene with glas cord and nylon covering |
|
Weight
|
5 kg / Pcs |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ELGR (english) , Data sheet |
