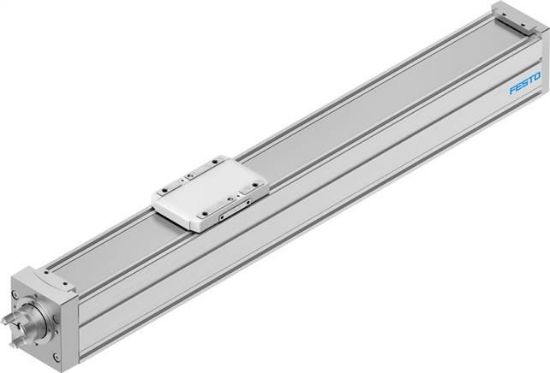

Working stroke [mm]
|
500 |
|
size
|
60 |
|
Stroke reserve [mm]
|
0 |
|
Spindle diameter [mm]
|
12 |
|
Spindle pitch [Millimeter]
|
12 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Electro-mechanical linear axis |
|
Motor type
|
Step motor |
|
Spindle type
|
Ball screw drive |
|
Max. acceleration [Meter pro ]
|
15 |
|
Max. speed [Umdrehung ]
|
4.000 |
|
Max. speed [m/s]
|
0,8 |
|
Repeatability
|
±0.01 mm |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
0 to 50 |
|
Flat torque 2nd grade ly []
|
441000 |
|
Flat torque 2nd grade lz []
|
542000 |
|
Empty run torque at maximum movement speed [Nm]
|
0,246 |
|
Empty run torque at minimum movement speed [Nm]
|
0,042 |
|
Max. force Fy [N]
|
600 |
|
Max. force Fz [N]
|
1.800 |
|
Fy for theoretical lifetime of 100 km (pure guide observation) [N]
|
2.208 |
|
Fz for theoretical lifetime of 100 km (purely management observation) [N]
|
6.624 |
|
Max. torque Mx [Nm]
|
29,1 |
|
Max. torque My [Nm]
|
31,8 |
|
Max. torque Mz [Nm]
|
31,8 |
|
Mx for theoretical lifetime of 100 km (Purely management observation) [Nm]
|
107 |
|
My for theoretical lifetime of 100 km (Purely management observation) [Nm]
|
117 |
|
Mz for theoretical lifetime of 100 km (Purely management observation) [Nm]
|
117 |
|
Max. feed force Fx [N]
|
200 |
|
Torsional moment of inertia to []
|
29.800 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
0,10779 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
0,036476 |
|
Mass inertia JO [Kilogramm ]
|
0,02235 |
|
Feed constant [Millimeter]
|
12 |
|
Moving mass [g]
|
525,0 |
|
Weight supplement per 10 mm stroke [g]
|
51 |
|
Dynamic bending (load moved)
|
0.05% of the axis length, maximum 0.5 mm |
|
Static bending (load at standstill)
|
0.1 % of the axis length |
|
Interface code actuator
|
T42 |
|
Closing cover material
|
Die cast aluminium, painted |
|
Profile material
|
Aluminium wrought alloy, anodised |
|
Material information
|
LABS containing materials included |
|
Masking tape material
|
High-alloyed stainless steels |
|
Actuator cover material
|
Die cast aluminium, painted |
|
Carriage guide material
|
Steel |
|
Guide carriage material
|
Steel |
|
Carriage material
|
Aluminium die casting |
|
Spindle nut material
|
Steel |
|
Spindle material
|
Steel |
|
Weight
|
4,2 kg / Pcs |
|
GTIN
|
4052568295844 |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ELGC-BS (english) , Data sheet |
