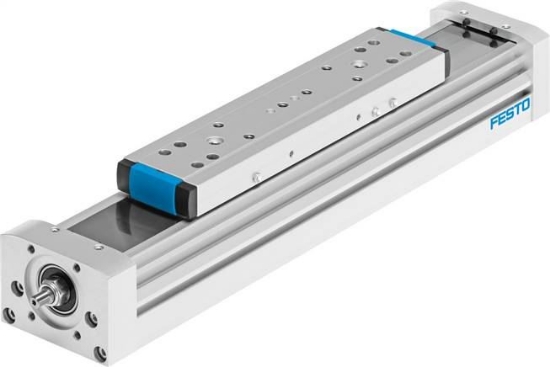

Working stroke [mm]
|
100 |
|
size
|
80 |
|
Stroke reserve [mm]
|
0 |
|
Spindle diameter [mm]
|
15 |
|
Spindle pitch [Millimeter]
|
10 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Electro-mechanical linear axis |
|
Motor type
|
Step motor |
|
Spindle type
|
Ball screw |
|
Measurement principle travel measurement system
|
Incremental |
|
Max. acceleration [Meter pro ]
|
15 |
|
Max. speed [Umdrehung ]
|
3.000 |
|
Max. speed [m/s]
|
0,5 |
|
Repeatability
|
±0.02 mm |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Flat torque 2nd grade ly []
|
310000 |
|
Flat torque 2nd grade lz []
|
977000 |
|
Empty run torque at maximum movement speed [Nm]
|
0,55 |
|
Empty run torque at minimum movement speed [Nm]
|
0,30 |
|
Max. force Fy [N]
|
2.500 |
|
Max. force Fz [N]
|
3.050 |
|
Fy for theoretical lifetime of 100 km (pure guide observation) [N]
|
9.200 |
|
Fz for theoretical lifetime of 100 km (purely management observation) [N]
|
11.224 |
|
Max. torque Mx [Nm]
|
36 |
|
Max. torque My [Nm]
|
228 |
|
Max. torque Mz [Nm]
|
228 |
|
Mx for theoretical lifetime of 100 km (Purely management observation) [Nm]
|
132 |
|
My for theoretical lifetime of 100 km (Purely management observation) [Nm]
|
839 |
|
Mz for theoretical lifetime of 100 km (Purely management observation) [Nm]
|
839 |
|
Max. radial force on drive shaft [N]
|
250 |
|
Max. feed force Fx [N]
|
1.600 |
|
Torsional moment of inertia to []
|
67.300 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
0,346 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
0,0253 |
|
Mass inertia JO [Kilogramm ]
|
0,097 |
|
Feed constant [Millimeter]
|
10 |
|
Moving mass [g]
|
1.370 |
|
Weight supplement per 10 mm stroke [g]
|
46,5 |
|
Dynamic bending (load moved)
|
0.05% of the axis length, maximum 0.5 mm |
|
Static bending (load at standstill)
|
0.1 % of the axis length |
|
Closing cover material
|
Aluminium wrought alloy |
|
Profile material
|
Aluminium wrought alloy |
|
Material information
|
LABS containing materials included |
|
Actuator cover material
|
Aluminium wrought alloy |
|
Carriage guide material
|
Steel |
|
Guide carriage material
|
Steel |
|
Carriage material
|
Aluminium wrought alloy |
|
Spindle nut material
|
Steel |
|
Spindle material
|
Steel |
|
Weight
|
4,3 kg / Pcs |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ELGA-BS (english) , Data sheet |
