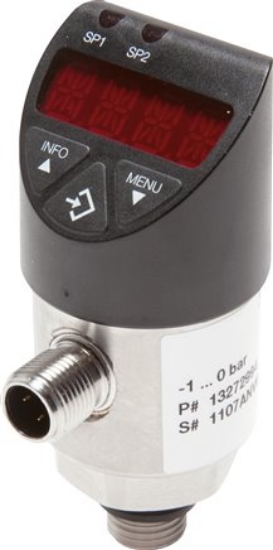

Electronic pressure switch, 0 - 600 bar, G 1/4" (MT)

Materials:

Housing: 1.4301, display: plastic, parts coming in contact with the substance being measured: 1.4404

Temperature range:

-20°C to +80°C, measured material, -20°C to +85°C

Protection class:

IP 67

Supply voltage:

15 - 35 V DC

Power input:

45 mA

Electrical connection:

M 12 plug (4-pin)

Control output (PNP/NPN):

2 control outputs (contacts, break contacts, windows and hysteresis can be freely adjusted for each control output), max. 250 mA

Switching accuracy:

± 0,5 % of range

Connection:

G 1/4" MT (with elastomer seal), (0 - 1000 bar: G 1/2" MT)

Service life:

100 million relay switches

Advantages:

•Easy-to-read, sturdy LED display, •Intuitive and quick operation, •Easily adjustable to various installation situations, e.g. by using a display that can be rotated 300° or digits that can be rotated 180° on the display, •Thread connector equipped with elastomer seal, •Honoured with the IF product design award, •Password-protected menu navigation

Optional:

IO-Link communication standard for quicker installation and parametrisation
