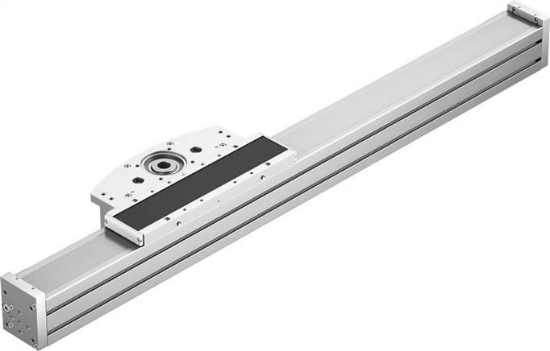

ELCC-TB-KF-90-600-0H-P0-CR (8082402)محورهای الکتریکی ELCCفستو

کد سفارش تولید کننده: 8082402
مشخصات
عنوان ویژگی مقدار ویژگی
Actuator pinion effective diameter [mm] 50,930
Working stroke [mm] 600
size 90
Stroke reserve [mm] 0
V-belt separation [mm] 5
installation position arbitrary
Guide ball guide
Construction set up Elektromechanische Auslegerachse
Max. acceleration [Meter pro ] 30
Max. speed [m/s] 5
Repeatability ±0.05 mm
Corrosion resistant class KBK 0 - No corrosion stressing
Protection category IP20
ambient temperature [°C] -10 to 60
Flat torque 2nd grade ly [] 2.6679e+006
Flat torque 2nd grade lz [] 2.04949e+006
Max. actuator torque [Nm] 30,6
Max. force Fy [N] 13.957
Max. force Fz [N] 13.523
Max. torque Mx [Nm] 167
Max. torque My [Nm] 1.300
Max. torque Mz [Nm] 1.233
Max. feed force Fx [N] 1.200
Mass inertia JH per metre stroke [Kilogramm ] 62,9
Mass inertia JL per kg usable load [Kilogramm ] 6,5
Mass inertia JO [Kilogramm ] 55,2
Feed constant [Millimeter] 160
Guideline running performance [km] 5.020
Lubrication interval running section depending [km] 1.000
Moving mass at 0 mm stroke [g] 5.487
Weight supplement per 10 mm stroke [g] 97
Base weight at 0 mm stroke [g] 14.787
Supplement moved mass per 10 mm stroke [g] 97
Closing cover material Aluminium wrought alloy, anodised
Profile material Aluminium wrought alloy, anodised
Material information LABS containing materials included
Actuator head material Aluminium wrought alloy, anodised
Guide carriage material Wälzlagerstahl, Corrotect beschichtet
Housing material High-alloyed stainless steels
Carriage material Aluminium-Guss, eloxiert
V-belt clamping body material Aluminium wrought alloy, anodised
V-belt material Polychloroprene with glas cord and nylon covering
Weight 0 g / Pcs
Customs duty number 84799070
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: ELCC (english) Data sheet
