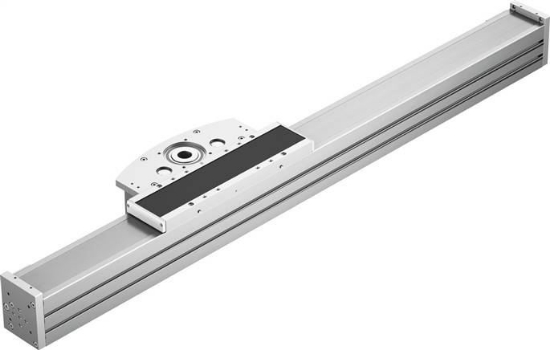

Actuator pinion effective diameter [mm]
|
68,755 |
|
Working stroke [mm]
|
500 |
|
size
|
110 |
|
Stroke reserve [mm]
|
0 |
|
V-belt separation [mm]
|
8 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Elektromechanische Auslegerachse |
|
Max. acceleration [Meter pro ]
|
30 |
|
Max. speed [m/s]
|
5 |
|
Repeatability
|
±0.05 mm |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Flat torque 2nd grade ly []
|
6.83057e+006 |
|
Flat torque 2nd grade lz []
|
4.92597e+006 |
|
Max. actuator torque [Nm]
|
85,9 |
|
Max. force Fy [N]
|
20.596 |
|
Max. force Fz [N]
|
20.022 |
|
Max. torque Mx [Nm]
|
317 |
|
Max. torque My [Nm]
|
2.368 |
|
Max. torque Mz [Nm]
|
2.286 |
|
Max. feed force Fx [N]
|
2.500 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
174,9 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
11,8 |
|
Mass inertia JO [Kilogramm ]
|
157,1 |
|
Feed constant [Millimeter]
|
216 |
|
Guideline running performance [km]
|
5.029 |
|
Lubrication interval running section depending [km]
|
1.000 |
|
Moving mass at 0 mm stroke [g]
|
10.017 |
|
Weight supplement per 10 mm stroke [g]
|
148 |
|
Base weight at 0 mm stroke [g]
|
27.299 |
|
Supplement moved mass per 10 mm stroke [g]
|
148 |
|
Closing cover material
|
Aluminium wrought alloy, anodised |
|
Profile material
|
Aluminium wrought alloy, anodised |
|
Material information
|
LABS containing materials included |
|
Actuator head material
|
Aluminium wrought alloy, anodised |
|
Guide carriage material
|
Wälzlagerstahl, Corrotect beschichtet |
|
Housing material
|
High-alloyed stainless steels |
|
Carriage material
|
Aluminium-Guss, eloxiert |
|
V-belt clamping body material
|
Aluminium wrought alloy, anodised |
|
V-belt material
|
Polychloroprene with glas cord and nylon covering |
|
Weight
|
0 g / Pcs |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ELCC (english) , Data sheet |
