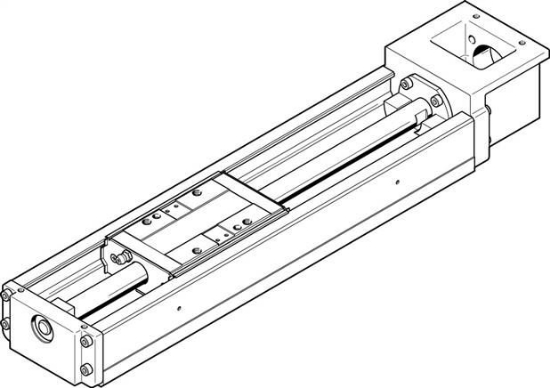

Working stroke [mm]
|
800 |
|
size
|
46 |
|
Reversing play [Mikrometer]
|
<= 20 µm |
|
Spindle diameter [mm]
|
15 |
|
Spindle pitch [Millimeter]
|
20 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Electro-mechanical linear axis |
|
Referencing
|
Reference switch |
|
Spindle type
|
Ball screw drive |
|
Max. acceleration [Meter pro ]
|
20 |
|
Max. speed [m/s]
|
1,05 |
|
Repeatability
|
±0.01 mm |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Protection category
|
IP10 |
|
ambient temperature [°C]
|
0 to 40 |
|
Dynamic load factor fixed bearing [N]
|
6.600 |
|
Dynamic load factor linear guide [N]
|
21.747 |
|
Dynamic load factor ball screw drive [N]
|
3.040 |
|
Flat torque 2nd grade ly []
|
240.000 |
|
Flat torque 2nd grade lz []
|
1.5e+006 |
|
Max. actuator torque [Nm]
|
0,610 |
|
Max. force Fy [N]
|
3.904 |
|
Max. force Fz [N]
|
3.904 |
|
Max. torque Mx [Nm]
|
115,0 |
|
Max. torque My [Nm]
|
38,7 |
|
Max. torque Mz [Nm]
|
38,7 |
|
Max. feed force Fx [N]
|
192 |
|
Empty run actuator torque [Nm]
|
0,100 |
|
Static load factor ball screw drive [N]
|
7.150 |
|
Static load factor linear guide [N]
|
45.500 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
0,3900 |
|
Mass inertia JO [Kilogramm ]
|
0,15400 |
|
Feed constant [Millimeter]
|
20 |
|
Static load factor fixed bearing [N]
|
3.240 |
|
Guideline running performance [km]
|
10.000 |
|
Moving mass [g]
|
910 |
|
Carriage weight [g]
|
910 |
|
Additional carriage weight [g]
|
910 |
|
Weight supplement per 10 mm stroke [g]
|
127 |
|
Base weight at 0 mm stroke [g]
|
5.170 |
|
Product weight [g]
|
15.330 |
|
Fastening type
|
With Female thread and dowel pin |
|
Closing cover material
|
Aluminium die casting |
|
Profile material
|
Coated |
|
Material information
|
LABS containing materials included |
|
Actuator cover material
|
Aluminium die casting |
|
Carriage material
|
Steel |
|
Spindle nut material
|
Steel |
|
Spindle material
|
Steel |
|
Weight
|
910 g / Pcs |
|
GTIN
|
4052568210038 |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EGSK (english) , Data sheet |
