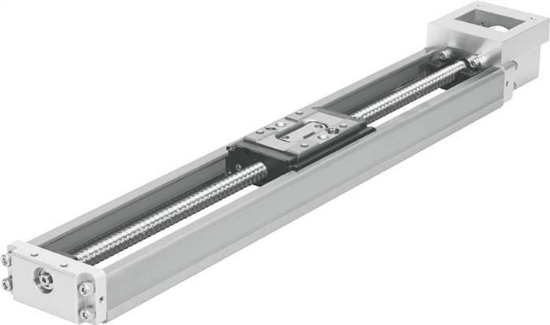

EGSK-26-50-2P (562764) محرک اسلاید خطی برقی پنوماتیک فستو

کد سفارش تولید کننده: 562764
مشخصات
عنوان ویژگی مقدار ویژگی
Working stroke [mm] 50
size 26
Reversing play [Mikrometer] <= 20 µm
Spindle diameter [mm] 8
Spindle pitch [Millimeter] 2
installation position arbitrary
Guide ball guide
Construction set up Electro-mechanical linear axis
Referencing Reference switch
Spindle type Ball screw drive
Max. acceleration [Meter pro ] 10
Max. speed [m/s] 0,28
Repeatability ±0.01 mm
Corrosion resistant class KBK 0 - No corrosion stressing
Protection category IP10
ambient temperature [°C] 0 to 40
Dynamic load factor fixed bearing [N] 1.380
Dynamic load factor linear guide [N] 5.746
Dynamic load factor ball screw drive [N] 2.350
Flat torque 2nd grade ly [] 17.000
Flat torque 2nd grade lz [] 150000
Max. actuator torque [Nm] 0,037
Max. force Fy [N] 2.223
Max. force Fz [N] 2.223
Max. torque Mx [Nm] 37,8
Max. torque My [Nm] 12,9
Max. torque Mz [Nm] 12,9
Max. feed force Fx [N] 116
Empty run actuator torque [Nm] 0,015
Static load factor ball screw drive [N] 4.020
Static load factor linear guide [N] 12.150
Mass inertia JH per metre stroke [Kilogramm ] 0,0316
Mass inertia JO [Kilogramm ] 0,00357
Feed constant [Millimeter] 2
Static load factor fixed bearing [N] 1.760
Guideline running performance [km] 1.000
Moving mass [g] 153
Carriage weight [g] 153
Additional carriage weight [g] 153
Weight supplement per 10 mm stroke [g] 42
Base weight at 0 mm stroke [g] 780
Product weight [g] 990
Fastening type With Female thread and dowel pin
Closing cover material Aluminium die casting
Profile material High-alloyed stainless steels
Material information LABS containing materials included
Actuator cover material Aluminium die casting
Carriage material Steel
Spindle nut material Steel
Spindle material Steel
Weight 153 g / Pcs
GTIN 4052568209728
Customs duty number 84799070
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: EGSK (english) Data sheet
