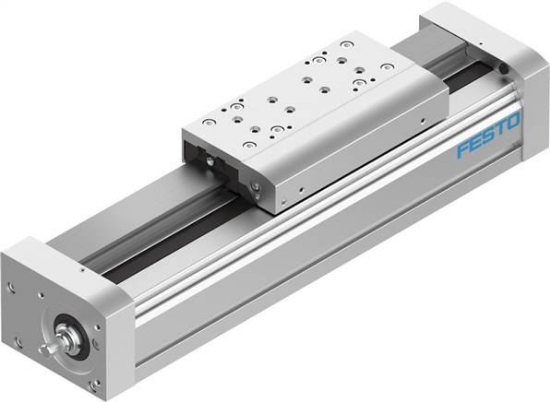

Working stroke [mm]
|
200 |
|
size
|
120 |
|
Stroke reserve [mm]
|
0 |
|
Spindle diameter [mm]
|
25 |
|
Spindle pitch [Millimeter]
|
10 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Electro-mechanical linear axis |
|
Motor type
|
Step motor |
|
Spindle type
|
Ball screw |
|
Max. acceleration [Meter pro ]
|
15 |
|
Max. speed [m/s]
|
0.6 to 0.75 |
|
Repeatability
|
±0.02 mm |
|
Power-on time
|
100% |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Flat torque 2nd grade lx []
|
5.01e+006 |
|
Flat torque 2nd grade ly []
|
5.82e+006 |
|
Flat torque 2nd grade lz []
|
5.01e+006 |
|
Max. force Fy [N]
|
6.890 |
|
Max. force Fz [N]
|
6.890 |
|
Max. torque Mx [Nm]
|
144 |
|
Max. radial force on drive shaft [N]
|
500 |
|
Max. feed force Fx [N]
|
1.500 |
|
Torsional moment of inertia to []
|
1.43e+006 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
2,756 |
|
Feed constant [Millimeter]
|
10 |
|
Closing cover material
|
Aluminium wrought alloy |
|
Carrier material
|
Aluminium wrought alloy |
|
Profile material
|
Aluminium wrought alloy |
|
Material information
|
RoHs compliant |
|
Actuator cover material
|
Aluminium wrought alloy |
|
Carriage guide material
|
Steel |
|
Guide carriage material
|
Steel |
|
Carriage material
|
Aluminium wrought alloy |
|
Spindle nut material
|
Steel |
|
Spindle material
|
Steel |
|
Weight
|
12 kg / Pcs |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EGC-BS (english) , Data sheet |
