Construction set up
|

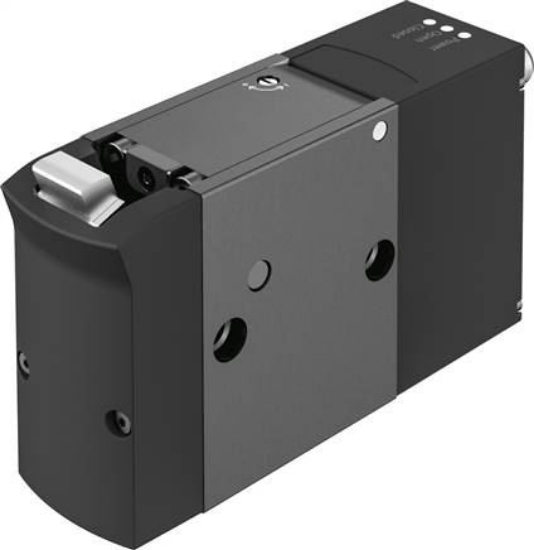

Electrical stopper cylinder |
|
size
|
100 |
|
installation position
|
arbitrary |
|
Position detection
|
with hall sensors |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
-10 to 60 |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Relative humidity
|
0 - 95 % |
|
Dampening length [mm]
|
18,2 |
|
Product weight [g]
|
985 |
|
Max. cycle frequency [hz]
|
0,33 |
|
Fastening type
|
with fastening set |
|
Material information
|
LABS containing materials included |
|
Cover material
|
PA |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy, hard anodised |
|
Piston rod material
|
High-alloyed stainless steels |
|
Screws material
|
Steel, powder-coated |
|
Max. power input [mA]
|
2.000 |
|
Nominal operating voltage DC [V]
|
24 |
|
Permitted voltage oscillations
|
± 15 % |
|
Motor type
|
Step motor |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Protection category
|
IP40 |
|
Max. line length
|
30 m |
|
Operation-readiness display
|
LED |
|
Electrical connection actuator, connection type
|
Plug |
|
Electrical connection actuator, connection technology
|
M12x1 A coded to EN 61076-2-101 |
|
Electrical connection actuator, number of pins / wires
|
5 |
|
Electrical connection sensor, connection type
|
Plug |
|
Electrical connection sensor, connection technology
|
M12x1 A coded to EN 61076-2-101 |
|
Electrical connection sensor, number of pins / wires
|
5 |
|
Weight
|
985 g / Pcs |
|
GTIN
|
4052568290962 |
|
Customs duty number
|
84798997 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EFSD (english) , Data sheet |
