Version:

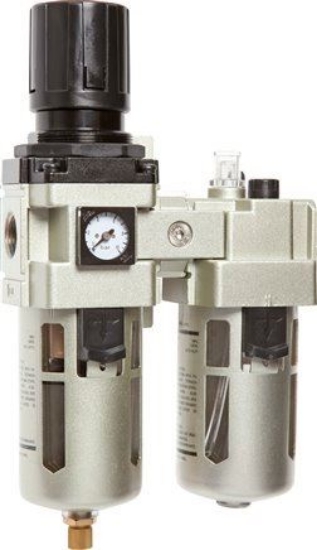

Filter regulator, resettable (with relieving) with attached lubricator
Materials:
Bodies: aluminium, spring hood: polyamide, diaphragm and seals: NBR, container: polycarbonate
Temperature range:
max. +60°C
Input pressure:
1,5 - 10 bar (regulation range: 0,5 - 8,5 bar)
Pore width in the filter:
5 µm
Media:
Compressed air
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components from a particular model series using coupling kits,
•Hand wheel can be locked by pressing down on it,
•Mounting brackets are included in the scope of delivery,
•Pre-mounted space-saving compact pressure gauge
•Can be filled with oil while under pressure
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Thread
|
G 1/4" |
|
Condensate drain
|
Manual drainage |
|
Flow l/min [l/min]
|
15 - 1000 |
|
Max. condensate amount [cm³]
|
15 |
|
Max. oil quantity [cm³]
|
25 |
|
Reaction limit (5.1 bar) [l/min]
|
15 |
|
L [mm]
|
90 |
|
H1 [mm]
|
168 |
|
H2 [mm]
|
82 |
|
Model series
|
Eco-Line 2 |
|
Pressure gauge display [bar]
|
0 - 10 |
|
Weight
|
500 g / Pcs |
|
GTIN
|
4050571280628 |
|
Customs duty number
|
84811005 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
EMC |
