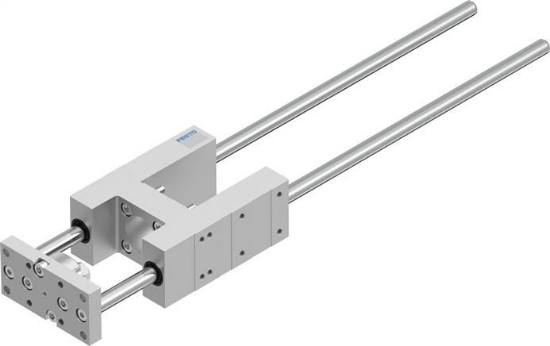

size
|
32 |
|
Stroke [mm]
|
320 |
|
Reversing play [Mikrometer]
|
0 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Guide |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
ambient temperature [°C]
|
-20 to 80 |
|
Max. force Fy [N]
|
750 |
|
Max. force Fy static [N]
|
1.020 |
|
Max. force Fz [N]
|
750 |
|
Max. force Fz static [N]
|
1.020 |
|
Max. torque Mx [Nm]
|
28 |
|
Max. torque Mx static [Nm]
|
38 |
|
Max. torque My [Nm]
|
34 |
|
Max. torque My static [Nm]
|
46 |
|
Max. torque Mz [Nm]
|
34 |
|
Max. torque Mz static [Nm]
|
46 |
|
Pushing force [N]
|
15,0 |
|
Moving mass [g]
|
1.300 |
|
Product weight [g]
|
2.261 |
|
Centre of mass of the moved mass at 0 mm stroke [mm]
|
30 |
|
Supplement centre of mass of the moved mass per 10 mm stroke [mm]
|
4,1 |
|
Fastening type
|
with female thread |
|
Material information
|
Copper and PTFE-free |
|
Guide element material
|
Quenched and tempered steel |
|
Housing material
|
Aluminium wrought alloy |
|
Joch plate material
|
Steel |
|
Weight
|
2.261 g / Pcs |
|
Customs duty number
|
84821090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EAGF (english) , Data sheet |
