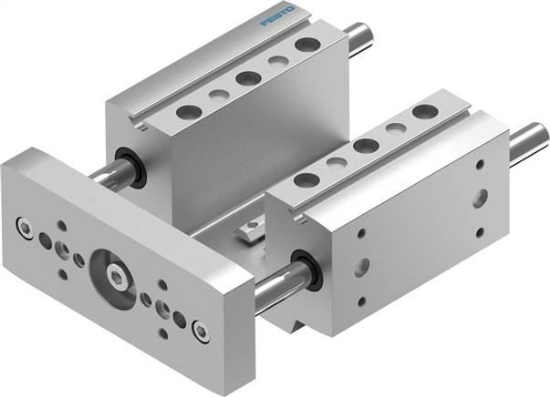

size
|
40 |
|
Stroke [mm]
|
50 |
|
Reversing play [Mikrometer]
|
0 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Guide |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
0 to 50 |
|
Max. force Fy [N]
|
380 |
|
Max. force Fy static [N]
|
510 |
|
Max. force Fz [N]
|
380 |
|
Max. force Fz static [N]
|
510 |
|
Max. torque Mx [Nm]
|
20 |
|
Max. torque Mx static [Nm]
|
27 |
|
Max. torque My [Nm]
|
15 |
|
Max. torque My static [Nm]
|
20 |
|
Max. torque Mz [Nm]
|
15 |
|
Max. torque Mz static [Nm]
|
20 |
|
Pushing force [N]
|
6,0 |
|
Centre of mass of the moved mass at 0 mm stroke [mm]
|
36 |
|
Supplement centre of mass of the moved mass per 10 mm stroke [mm]
|
4,5 |
|
Fastening type
|
with female thread |
|
Material information
|
Copper and PTFE-free |
|
Guide element material
|
Quenched and tempered steel |
|
Housing material
|
Aluminium wrought alloy |
|
Joch plate material
|
Aluminium wrought alloy |
|
Max. acceleration [Meter pro ]
|
25 |
|
Max. speed [m/s]
|
1 |
|
Protection category
|
IP40 |
|
Moving mass at 0 mm stroke [g]
|
560 |
|
Weight supplement per 10 mm stroke [g]
|
18 |
|
Base weight at 0 mm stroke [g]
|
1.910 |
|
Supplement moved mass per 10 mm stroke [g]
|
18 |
|
Weight
|
2,1 kg / Pcs |
|
Customs duty number
|
84821090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EAGF (english) , Data sheet |
