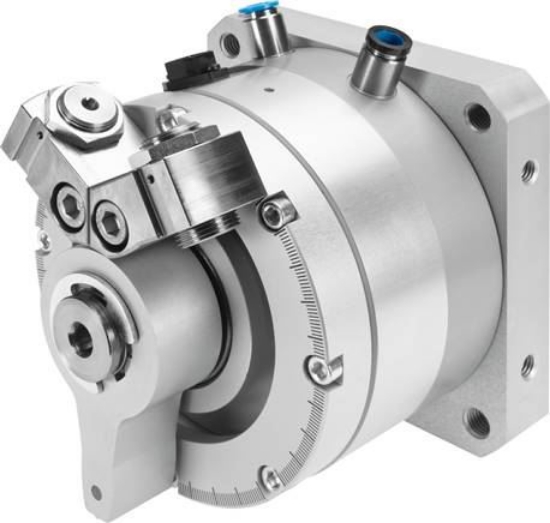

Settings range swivel angle [deg]
|
0 to 270 |
|
Stroke reduction at the end positions
|
5 ° |
|
Smallest positioning stroke
|
15° for soft stop |
|
Piston diameter
|
63 mm |
|
Swivel angle [deg]
|
0 to 272 |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
Position the integration location
|
arbitrary |
|
Integration position soft stop
|
horizontal |
|
Measurement principle travel measurement system
|
Analogue |
|
Construction set up
|
Drive shaft ball bearing mounted |
|
Position detection
|
With Angle measurement system integrated |
|
Operating pressure positioning / soft stop [bar]
|
4 to 8 |
|
Max. swivel frequency at 6 bar [hz]
|
1 |
|
Max. movement speed [Grad pro S]
|
2.000 |
|
Min. movement speed [Grad pro S]
|
50 |
|
Typical positioning time short stroke, horizontal
|
0,36/0,55 s |
|
Typical positioning time long stroke, horizontal
|
0,64/1 s |
|
Connection resistance [Kilo-Ohm]
|
5 |
|
Recommended grinder current [Mikroamper]
|
< 1 µA |
|
Principle of operation
|
double acting |
|
Max. operating voltage DC [V]
|
42 |
|
Max. grinder current short term [Mikroamper]
|
10.000 |
|
Max. power input [mA]
|
4 |
|
Nominal operating voltage DC [V]
|
10 |
|
Tolerance connection resistance [%]
|
20 |
|
Permitted voltage oscillations
|
< 1 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [6:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Continuous impact strength DIN&EC 68 parts 2-82
|
Tested to severity class 2 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Protection category
|
IP65 |
|
Oscillation strength to DIN/IEC 68 part 2-6
|
Tested to severity class 2 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Impact energy at the end positions [J]
|
0,10 |
|
Max. axial force [N]
|
500 |
|
Max. mass inertia, horizontal [Kilogramm ]
|
0,60 |
|
Max. mass inertia, vertical [Kilogramm ]
|
0,60 |
|
Max. radial force [N]
|
500 |
|
Min. mass moment of inertia, horizontal [Kilogramm ]
|
0,0300 |
|
Min. mass moment of inertia, vertical [Kilogramm ]
|
0,0300 |
|
Theoretical torque at 6 bar [Nm]
|
40 |
|
Product weight [g]
|
6.900 |
|
Resolution angle [deg]
|
<= 0,1 deg |
|
output signal
|
Analogue |
|
Independent linearity
|
0,0025 |
|
Repeatability positioning
|
± 0,3 deg |
|
Repeatability soft stop end position
|
< 0.2 deg |
|
Repeatability soft stop intermediate position
|
± 2 deg |
|
Electrical connection: path measurement system
|
4 pin |
|
Cable length [MTR]
|
30 |
|
Fastening type
|
with female thread |
|
Pneumatic connection
|
G1/4 |
|
Housing measurement system material
|
Aluminium wrought alloy |
|
Material information
|
Copper and PTFE-free |
|
Stopper lever material
|
Aluminium wrought alloy |
|
Drive shaft material
|
Nickel- |
|
Fixed limit stop material
|
Steel |
|
Housing material
|
Aluminium wrought alloy |
|
Measurement system coupling material
|
NBR |
|
Feather key material
|
Steel |
|
Rotary vane material
|
PET reinforced |
|
Plug housing material
|
PA reinforced |
|
Cylinder tube material
|
Aluminium wrought alloy |
|
Weight
|
6.900 g / Pcs |
|
GTIN
|
4052568228491 |
|
Customs duty number
|
84123900 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DSMI (english) , Data sheet |
