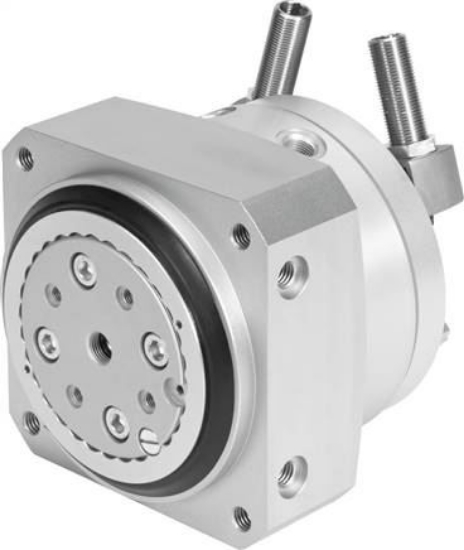

size
|
12 |
|
Dampening angle [deg]
|
10,0 |
|
Settings range swivel angle [deg]
|
0 to 246 |
|
Swivel angle [deg]
|
0 to 246 |
|
Dampening
|
P1: Elastic silencer rings / plates double-sided With fixed limit stop |
|
installation position
|
arbitrary |
|
Fine adjustment [deg]
|
-6 |
|
Principle of operation
|
double acting |
|
Construction set up
|
Rotary vane |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
3 to 10 |
|
Max. swivel frequency at 6 bar [hz]
|
1,5 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
ambient temperature [°C]
|
-10 to 60 |
|
Max. axial force [N]
|
180 |
|
Max. radial force [N]
|
200 |
|
Theoretical torque at 6 bar [Nm]
|
1,25 |
|
Permitted mass moment of inertia [Kilogramm ]
|
0,01500 |
|
Product weight [g]
|
420 |
|
Fastening type
|
with female thread |
|
Pneumatic connection
|
M5 |
|
Material information
|
Copper and PTFE-free |
|
Drive shaft material
|
Nickel- |
|
Seals material
|
TPE-U(PU) |
|
Housing material
|
Aluminium wrought alloy |
|
Weight
|
420 g / Pcs |
|
GTIN
|
4052568231200 |
|
Customs duty number
|
84123900 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DSM-B (english) , Data sheet |
