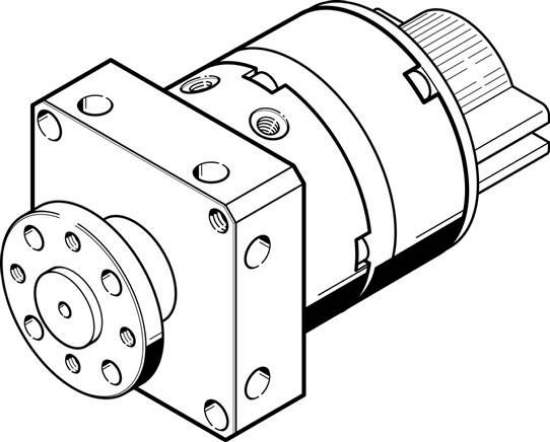

size
|
10 |
|
Dampening angle [deg]
|
0 |
|
Settings range swivel angle [deg]
|
0 to 200 |
|
Swivel angle [deg]
|
0 to 200 |
|
installation position
|
arbitrary |
|
Fine adjustment [deg]
|
-5 |
|
Principle of operation
|
double acting |
|
Construction set up
|
Rotary vane |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
2.5 to 8 |
|
Max. swivel frequency at 6 bar [hz]
|
2,0 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
0 to 60 |
|
Theoretical torque at 6 bar [Nm]
|
0,85 |
|
Permitted mass moment of inertia [Kilogramm ]
|
0,00260 |
|
Product weight [g]
|
265 |
|
Fastening type
|
with female thread |
|
Pneumatic connection
|
M3 |
|
Material information
|
Copper and PTFE-free |
|
Drive shaft material
|
High-alloyed stainless steels |
|
Seals material
|
TPE-U(PU) |
|
Housing material
|
aluminium |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Weight
|
265 g / Pcs |
|
GTIN
|
4052568146368 |
|
Customs duty number
|
84123900 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DSM-B (english) , Data sheet |
