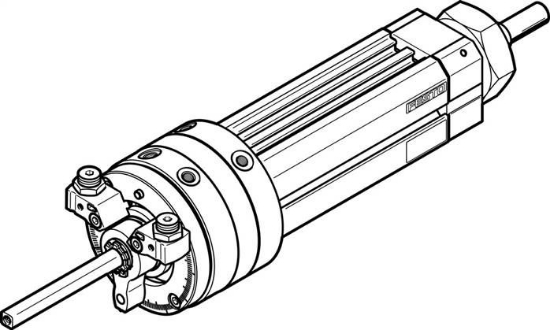

Settings range swivel angle [deg]
|
0 to 270 |
|
Stroke [mm]
|
100 |
|
Piston diameter
|
32 mm |
|
Swivel angle [deg]
|
0 to 272 |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
installation position
|
arbitrary |
|
Fine adjustment [deg]
|
-6 |
|
Principle of operation
|
double acting |
|
Construction set up
|
Rotary vane |
|
Position detection
|
For proximity switch |
|
Variants
|
continuous piston rod |
|
Anti-twist lock / guide
|
Slide guided |
|
Operating pressure [bar]
|
2.5 to 8 |
|
Max. impact speed [m/s]
|
0,5 |
|
Max. swivel frequency at 6 bar [hz]
|
2,0 |
|
Swivel angle play [deg]
|
2,00 |
|
Repeatability [deg]
|
1,0 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
-10 to 60 |
|
Dynamic load torque [Nm]
|
0,80 |
|
Theoretical force at 6 bar, Return flow [N]
|
294,0 |
|
Theoretical force at 6 bar, flow [N]
|
422,5 |
|
Theoretical torque at 6 bar [Nm]
|
10,00 |
|
Permitted mass moment of inertia [Kilogramm ]
|
0,00017 |
|
Weight supplement per 10 mm stroke [g]
|
109 |
|
Base weight at 0 mm stroke [g]
|
2.840 |
|
Product weight [g]
|
2.840 |
|
Fastening type
|
clamped in t-slot |
|
Pneumatic connection
|
G1/8 |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
TPE-U(PU) |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
Quenched and tempered steel |
|
Weight
|
4,1 kg / Pcs |
|
GTIN
|
4052568201012 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DSL-B (english) , Data sheet |
