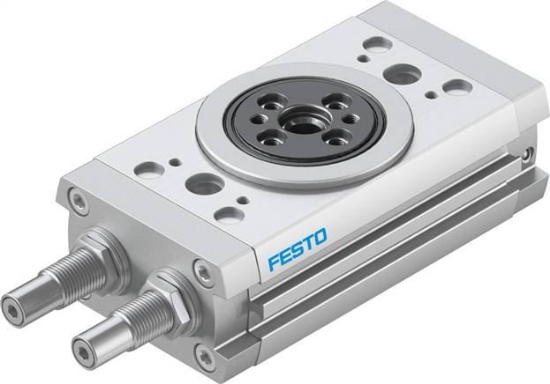

size
|
35 |
|
Dampening angle [deg]
|
85 |
|
Settings range swivel angle double-sided
|
+10 /-190 deg |
|
Swivel angle [deg]
|
180 |
|
Dampening
|
Y9: Internal hydraulic dampening Normal |
|
installation position
|
arbitrary |
|
Construction set up
|
Toothed rack/pinion |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
2 to 10 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
ambient temperature [°C]
|
-10 to 60 |
|
Theoretical torque at 6 bar [Nm]
|
15,80 |
|
Permitted mass moment of inertia [Kilogramm ]
|
1,5000 |
|
Product weight [g]
|
4.784 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection
|
G1/8 |
|
Material information
|
LABS containing materials included |
|
Drive shaft material
|
Quenched and tempered steel |
|
Cover material
|
aluminium |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Weight
|
4.784 g / Pcs |
|
GTIN
|
4052568238247 |
|
Customs duty number
|
84123900 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DRRD (english) , Data sheet |
