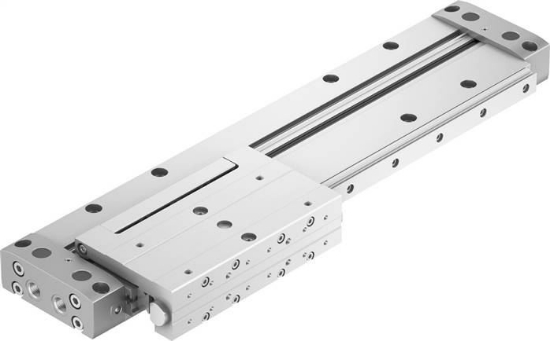

Stroke [mm]
|
400 |
|
Piston diameter
|
32 mm |
|
Dampening
|
PPS: Self-setting pneumatic end position dampening |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Carrier principle
|
Form-fitting (slot) |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
1.5 to 8 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
0 to 60 |
|
Dampening length [mm]
|
11,6 |
|
Max. force Fy [N]
|
1.300 |
|
Max. Kraft -Fz (hin zum Antrieb) [N]
|
1.600 |
|
Max. Kraft +Fz (weg vom Antrieb) [N]
|
950 |
|
Max. torque Mx [Nm]
|
30,0 |
|
Max. torque My [Nm]
|
50,0 |
|
Max. torque Mz [Nm]
|
50,0 |
|
Theoretical force at 6 bar, Return flow [N]
|
483 |
|
Theoretical force at 6 bar, flow [N]
|
483 |
|
Moving mass [g]
|
1.622 |
|
Product weight [g]
|
5.602 |
|
Alternative connections
|
See product drawing |
|
Fastening type
|
mit Zubehör |
|
Pneumatic connection
|
G1/8 |
|
Material information
|
RoHS konform |
|
Cover material
|
Aluminium-Guss, beschichtet |
|
Seals material
|
NBR |
|
Housing material
|
Anodised aluminium |
|
Weight
|
5.602 g / Pcs |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DLGF (english) , Data sheet |
