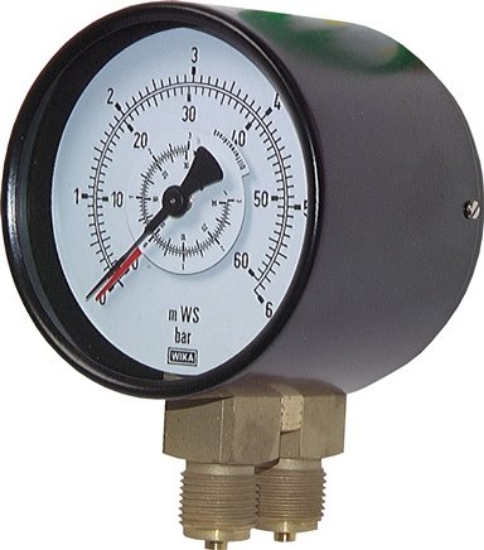

Differential pressure gauge, vertical 160mm, 0 - 6 bar

Suitable:

The differential pressure-pressure gauge is suitable for liquid and gaseous media as long as these are not highly viscous or crystallised.

Function:

Two independent pipe spring measuring systems work in the stable round housing. Both system indicators rotate around the same centre axis and display the pressures separately. The pointer with the lower pressure is designed as scale window. On this scale, the differential pressure of the respective display range can be read directly. Both single pressures are also directly visible.

Materials:

Housing: black steel, measuring system and connection: Cu alloy, window: instrument plate glass

Connection thread:

2 x G 1/2" *

Class:

1,6

Temperature range:

-20°C to +60°C

Protection class:

IP 33

Note:

WIKA Type 711.12

Optional:

ISO calibration certificate (factory calibration certificate) acc. to DIN EN ISO 17025, VDI and data sheet DAkkS-DKD-MB-3 with 5 measurement points
