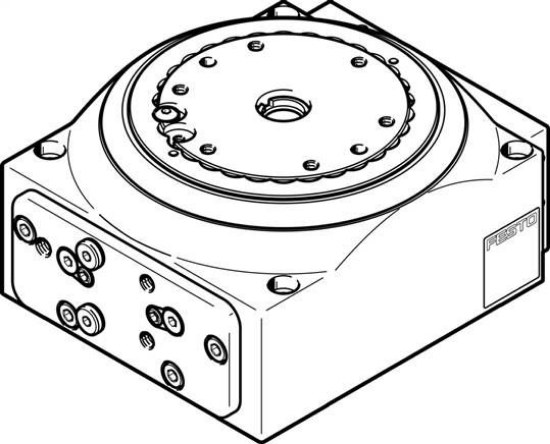

size
|
65 |
|
Parallelity plate [mm]
|
<= 0,04 mm |
|
Plan run plate [mm]
|
<= 0,02 mm |
|
Concentricity plate [mm]
|
<= 0,02 mm |
|
Repeatability of the swivel angle [deg]
|
<= 0,03 deg |
|
Dampening
|
YSRJ: Shock absorber, hard characteristic curve, Alignable |
|
installation position
|
arbitrary |
|
Principle of operation
|
double acting |
|
Construction set up
|
Toothed rack/pinion |
|
Position detection
|
For inductive sensors |
|
Partition
|
4 |
|
Operating pressure [bar]
|
4 to 8 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Noise level [Dezibel (?]
|
<= 70 dB(A) |
|
ambient temperature [°C]
|
5 to 60 |
|
Max. axial force static [N]
|
1.000 |
|
Max. tilting torque static [Nm]
|
100 |
|
Max. radial force static [N]
|
2.000 |
|
Max. tangential torque static [Nm]
|
100 |
|
Theoretical torque at 6 bar [Nm]
|
2,1 |
|
Product weight [g]
|
1.900 |
|
Fastening type
|
With Throughway bore and centring sleeve |
|
Pneumatic connection
|
female thread M5 |
|
Plate material
|
Zinc plated steel |
|
Material information
|
Copper and PTFE-free |
|
Stoppers material
|
Zinc plated steel |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Weight
|
1.900 g / Pcs |
|
GTIN
|
4052568189655 |
|
Customs duty number
|
84798997 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DHTG (english) , Data sheet |
