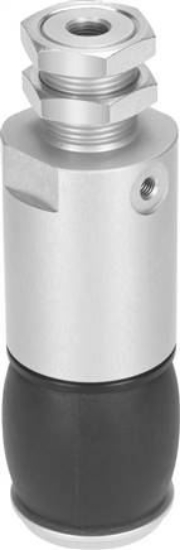

size
|
14 |
|
Bellows stroke [mm]
|
7,0 |
|
Min. diameter to be gripped [mm]
|
15,0 |
|
Max. diameter to be gripped [mm]
|
19,5 |
|
installation position
|
arbitrary |
|
Principle of operation
|
single action |
|
Construction set up
|
Contact membrane |
|
Guide
|
Base guide |
|
Position detection
|
without |
|
Operating pressure [bar]
|
5 to 8 |
|
reset pressure [bar]
|
< 1 bar |
|
Max. working frequency gripper [hz]
|
<= 4 Hz |
|
Min. opening time a 6 bar [ms]
|
20 |
|
Min. closing time at 6 bar [ms]
|
40 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
5 to 60 |
|
Centre exchange interval for bellows []
|
0,5 |
|
Guideline payload [KGM]
|
0,15 |
|
Product weight [g]
|
17 |
|
Fastening type
|
With Male thread |
|
Pneumatic connection
|
M3 |
|
Material information
|
LABS containing materials included |
|
Bellows material
|
EPDM |
|
Housing material
|
aluminium |
|
Weight
|
17 g / Pcs |
|
GTIN
|
4052568230104 |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DHEB (english) , Data sheet |
